Doughty Fifty Clamp
$34.12
Doughty Fifty Clamp
$34.12
Colour:
Black
Please enter correct zip code

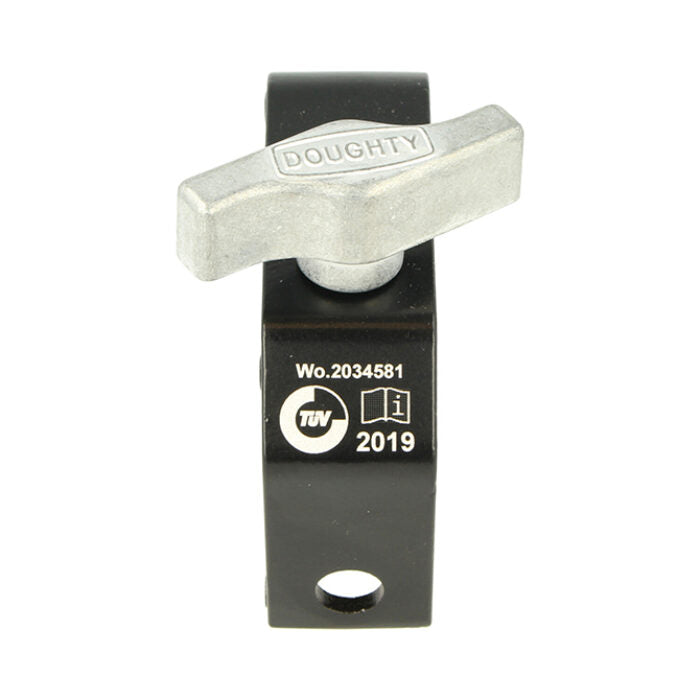

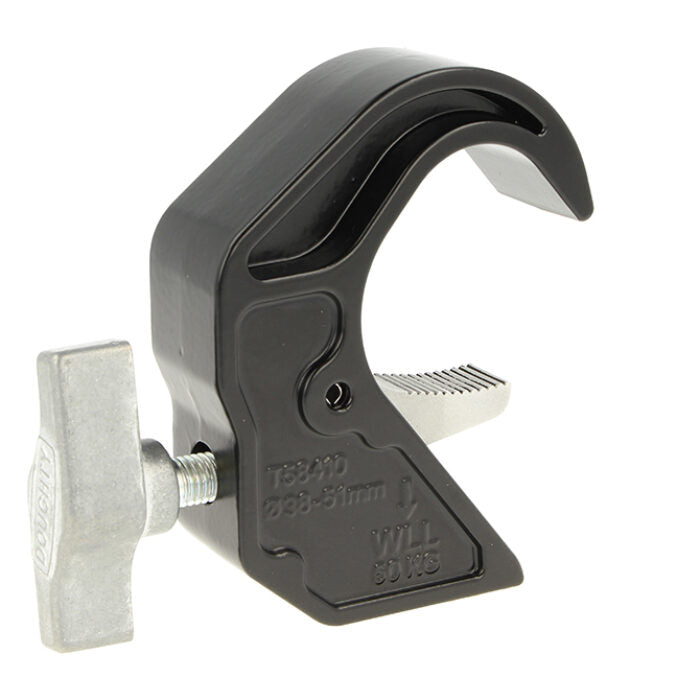

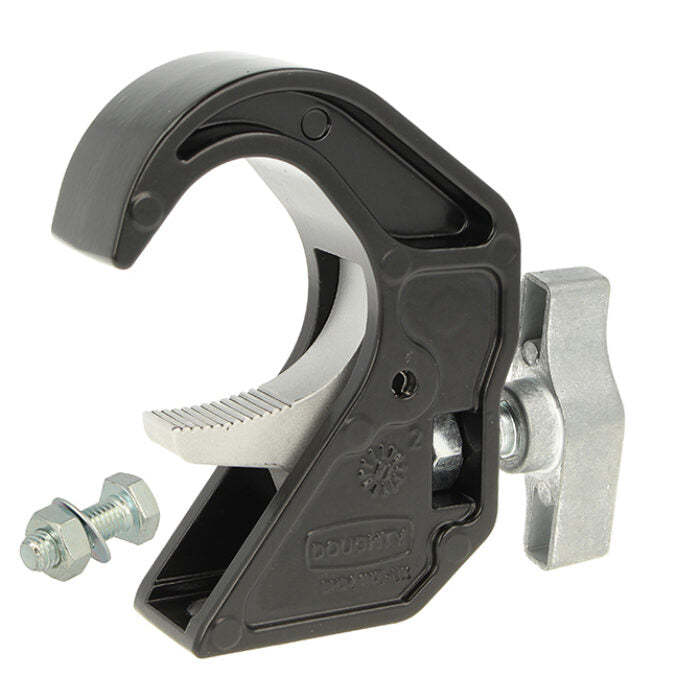

Doughty Fifty Clamp
An innovative pressure die cast aluminium clamp that is suitable for 38mm to 51mm (1.50″ – 2.01″) diameter tubes. It has a WLL of 50Kg and is 30mm (1.18″) wide. Slotted to hold captive an M10 nut or bolt head. Ideal for use with lightweight lanterns on trussing as it will not damage the cords. The perfect replacement for old style steel hook clamps. Available powder coated black.
Downloads:
Key Features:
- Innovative pressure die cast aluminium construction
- Compatible with 38mm to 51mm (1.50″ – 2.01″) diameter tubes
- Working Load Limit (WLL) of 50Kg
- Slotted to hold captive an M10 nut or bolt head
- Powder coated black finish for a sleek and durable appearance

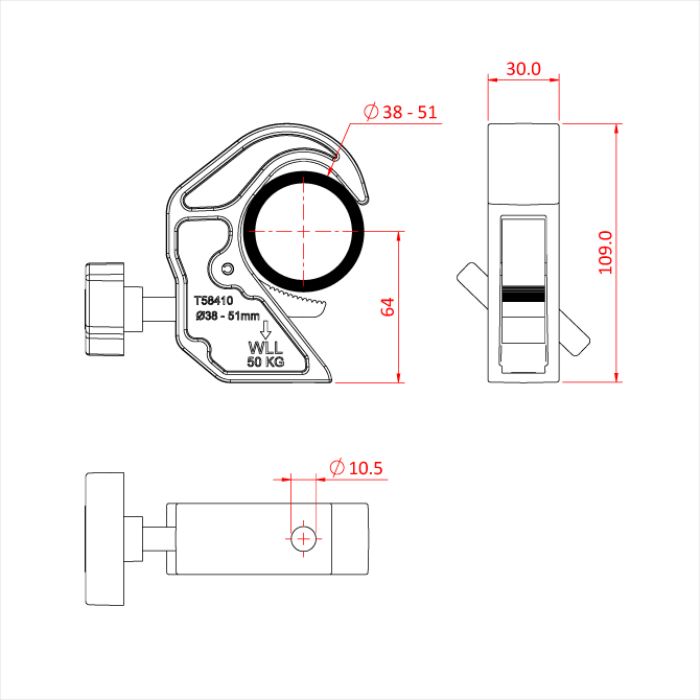

Specifications:
- WLL: 50Kg
- Tube Diameter: 38-51mm (1.50" – 2.01")
- Clamp Width: 30mm (1.18")
- Material: Pressure die cast aluminium
- Finish: Powder coated black
References:
- Ideal for use with lightweight lanterns on trussing
- Perfect replacement for old style steel hook clamps
- Designed to avoid damage to truss cords
