CM Prostar 500 lbs - Electric Chain Hoist
CM Prostar 500 lbs - Electric Chain Hoist $2,591.85

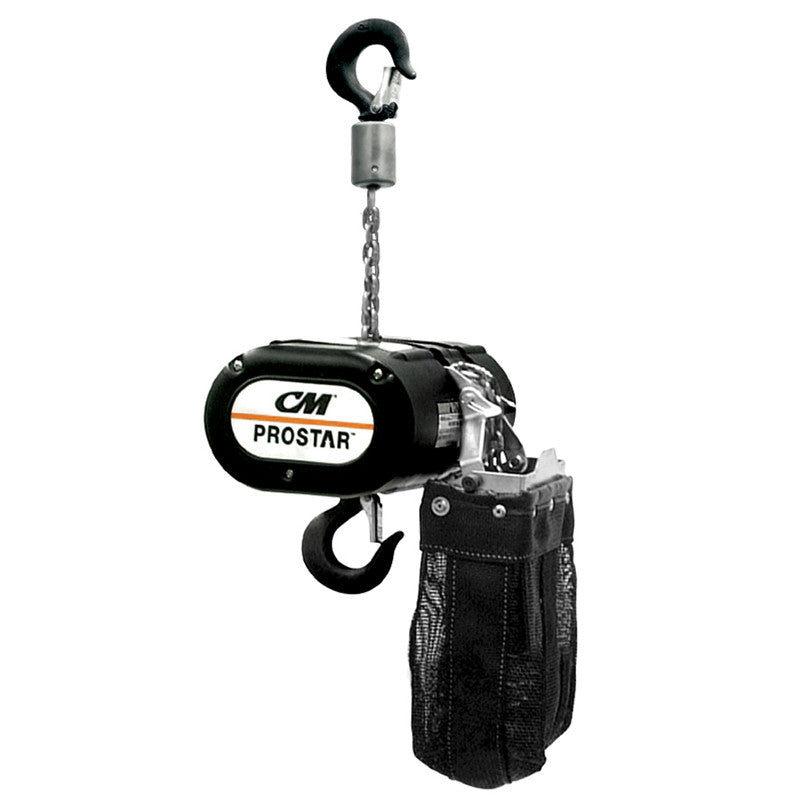

  • CM Prostar 500 lb Electric Chain Hoist

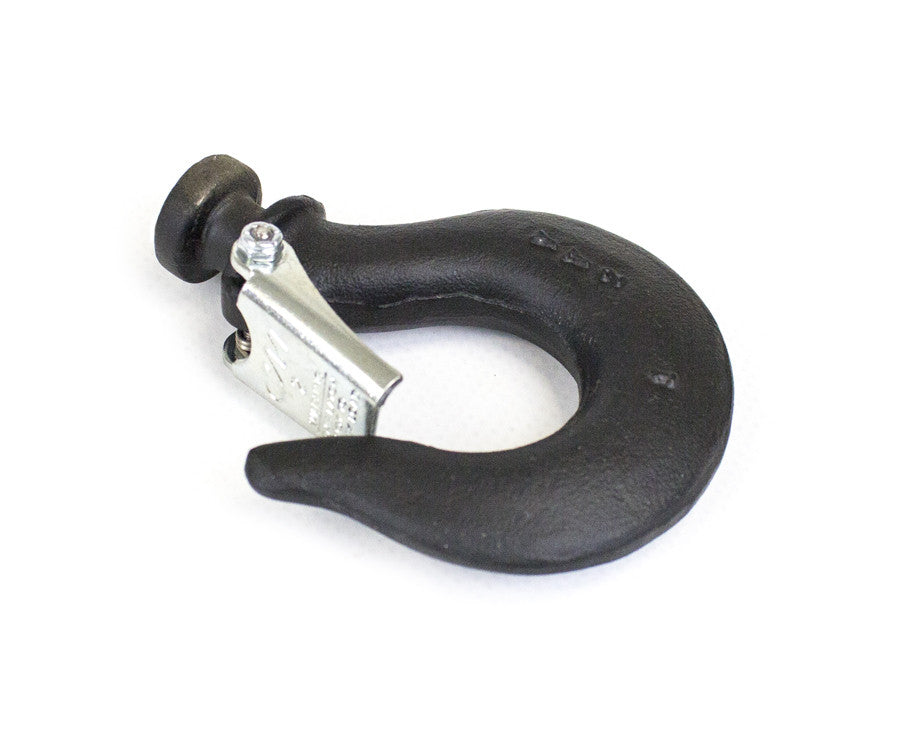

  • CM Prostar - swivel LatchGate hook (standard) - imagen 2

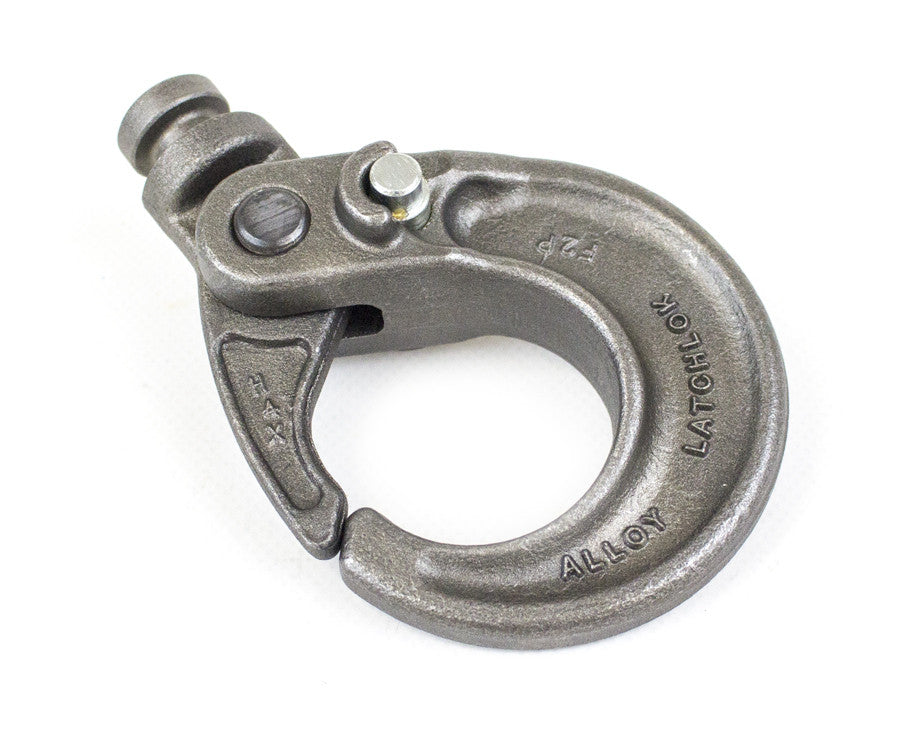

  • CM Prostar - CM swivel LatchLok hook (upgrade) - imagen 3

CM Prostar 500 lbs - Electric Chain Hoist

CM |
SKU: 2127-60-NC-NH
$2,591.85
  • Shipping: 5-7 business days
  • CM Warranty: Lifetime on hoist
  • 500 lb Capacity: Single-reeved, 16 ft/min at 60 Hz with a 1/6 HP motor and 4 mm Hoistaloy® load chain.
  • Compact and Light: Die-cast aluminum housing, 28 lb hoist weight without chain and a 10-pocket oblique liftwheel for quiet lifting.
  • Built-In Protection: Protector™ overload device, DC disc brake with regenerative braking and a chain stop against over-travel.
  • Complete Package: Ships with load chain, Prostar chain bag, MPDHPS bracket and your choice of connector.
View full description Technical data
Secure checkout
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Please select country
Please enter correct zip code

shipping

Test heading

What comes with your hoist

Price $2,591.85
Weight
  • Hoist
  • Load chain
  • Chain bag
  • Bracket
  • Hooks Swivel LatchGate (standard)
  • Power / control
  • Handles

CM Prostar 500 lb Electric Chain Hoist

The CM Prostar is a compact 500 lb (1/4 ton) electric chain hoist built for smaller venues, theaters, corporate events and touring productions. It lifts at 16 ft/min with a 1/6 HP thermally protected motor on a single fall of 4 mm Hoistaloy® load chain, and the hoist itself weighs just 28 lb (12.7 kg) without chain.

Every hoist ships as a complete package: zinc-plated load chain for your selected lift (60, 80, 90 or 100 ft), the matching Prostar chain bag (MPDHPS 13 for 60 ft, MPDHPS 18 for 80 to 100 ft), the MPDHPS chain bag bracket and your choice of power/control connector, with forged steel upper and lower hooks with latch.

Why the Prostar

  • Protector™ overload device that prevents lifting dangerous overloads
  • DC disc motor brake plus regenerative braking, non-adjusting for low maintenance
  • Patented 10-pocket oblique-lay liftwheel for quiet, smooth lifting and reduced chain wear
  • One-piece jam-free chain guide and a chain stop to prevent over-travel
  • H-4 / FEM 2m duty rating, UL and cUL listed

Ideal for

Smaller theaters and venues, corporate events, touring productions and rental companies that need a compact, lightweight 500 lb chain motor.

Custom Options Available

Other lift lengths, black phosphate chain, Latchlok hooks, other voltages or fleet quantities: request a quote and our CM-certified technicians will prep your hoists to spec.

Related resources

CM Prostar manual (PDF) · Prostar parts · Chain hoist maintenance tips · MTN mobile hoist service · Guide to MTN chain hoist bags · Columbus McKinnon (CM) collection · Hoist servicing (Part 1) · Hoist servicing (Part 2)

Safety: Always install, operate, inspect and maintain the hoist according to the CM manual and applicable codes. Never exceed the rated capacity. Not for lifting people.

Why buy your CM hoist from MTN

CONFIGURED TO YOUR SPECIFICATIONS

Every hoist is inspected and configured by our CM-certified technicians prior to shipment, with ongoing parts availability and service support

Request a quoteContact Us

  • CM-Certified Technicians:

    Hooks, control handles and connectors are configured to your requirements before the hoist is dispatched.

  • On-Site Hoist Service:

    On-site inspection and repair from the MTN Hoist Service team.

  • Next Gen Parts Availability:

    Genuine replacement parts in stock and ready to ship.

  • Fleet & volume orders

    Expanding your rental inventory? Contact us about multi-hoist packages, including road cases.

Related Products

Explore chain hoists, controllers and accessories for concerts, theater, touring productions and professional entertainment rigging.

View all

Frequently Asked Questions

What is the difference between the CM Prostar 500 lb and a CM Lodestar?
The CM Prostar is built for smaller venues where size and weight matter: 500 lb capacity, a 1/6 HP motor, 4 mm load chain and a hoist weight of just 28 lb without chain. Our CM Lodestar models start at 1/2 ton (1,000 lb) and weigh around 64 to 70 lb.
What is included with the CM Prostar 500 lb?
Each hoist ships with zinc-plated load chain for your selected lift (60, 80, 90 or 100 ft), the matching Prostar chain bag (MPDHPS 13 for 60 ft, MPDHPS 18 for 80 to 100 ft), the MPDHPS chain bag bracket, forged steel hooks with latch and your chosen connector.
Which connector should I choose for the CM Prostar 500 lb?
Choose the connector that matches your power and control system: Dual Twist (L16-20 and L14-20), C7 PS or P14 PS. The w/ 14-20 versions add an L14-20 auxiliary individual control. Choose No Connectors if you will fit your own. The hoist runs on 230V three-phase power.
What hook options are available for the CM Prostar 500 lb?
The CM Prostar comes with forged steel upper and lower hooks with latch. CM Latchlok hooks are available on request and stay locked until the operator presses the release button, even if the load chain goes slack. Handles are not offered on the Prostar.
What duty rating does the CM Prostar 500 lb have?
The CM Prostar 500 lb carries an H-4 duty rating (FEM 2m) for professional entertainment use. It is UL and cUL listed and is built to the applicable sections of the National Electrical Code (ANSI/NFPA 70). Always check local codes before installing the hoist.
