CM Lodestar Next Gen RRS 2 Ton Single Reeve - Electric Chain Hoist
CM Lodestar Next Gen RRS 2 Ton Single Reeve - Electric Chain Hoist $5,646.66

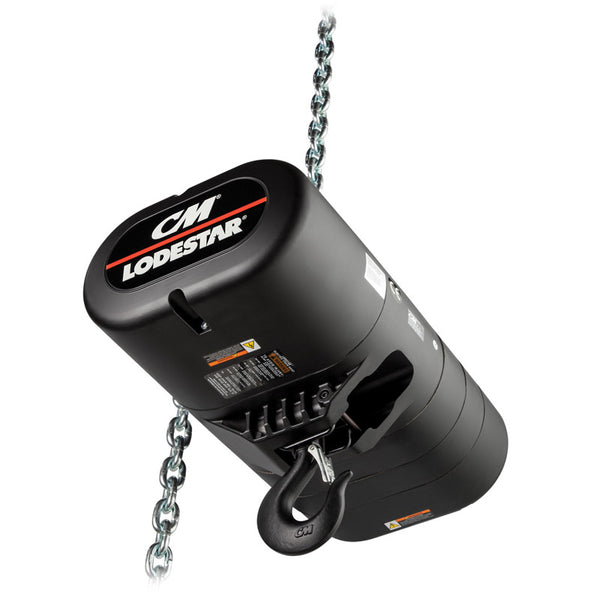

  • CM Lodestar Next Gen RRS 2 Ton Single-Reeved Electric Chain Hoist

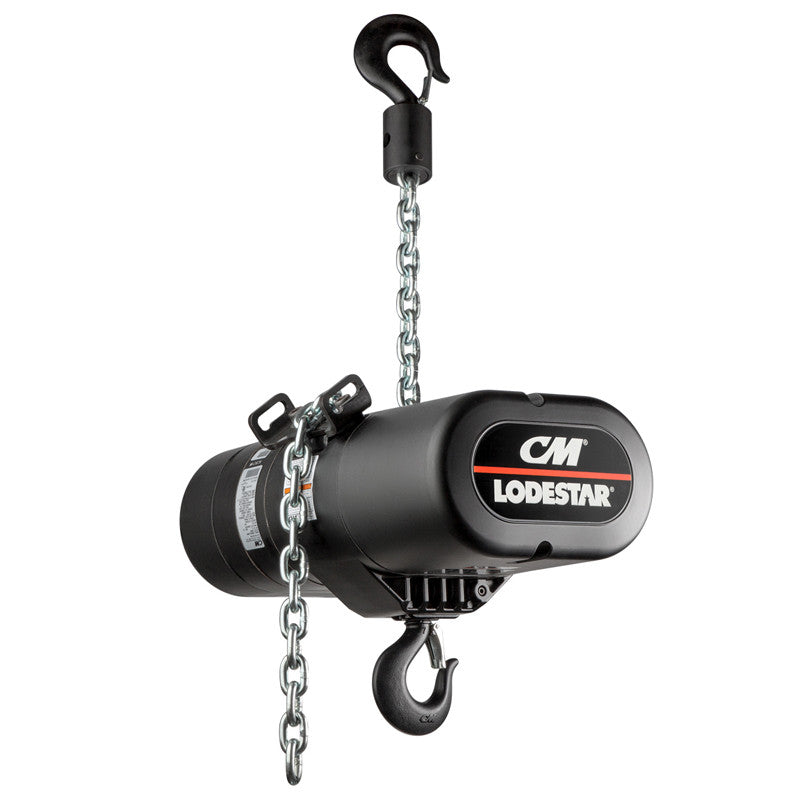

  • CM Lodestar Next Gen RRS 2 Ton Single-Reeved Electric Chain Hoist - imagen 2

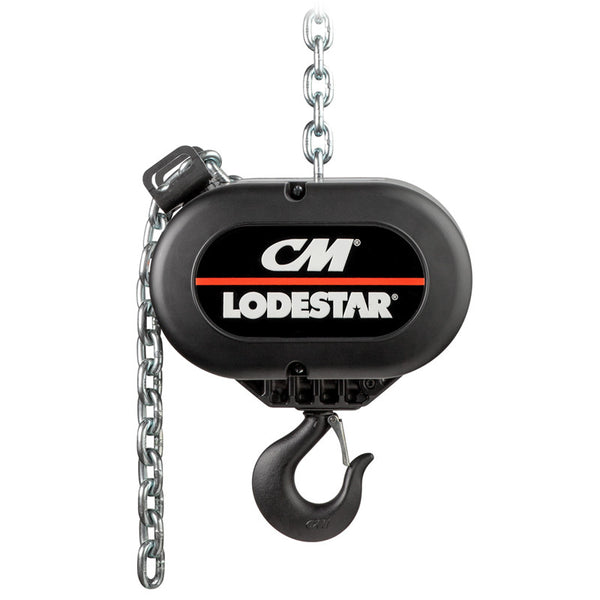

  • CM Lodestar Next Gen RRS 2 Ton Single-Reeved Electric Chain Hoist - imagen 3

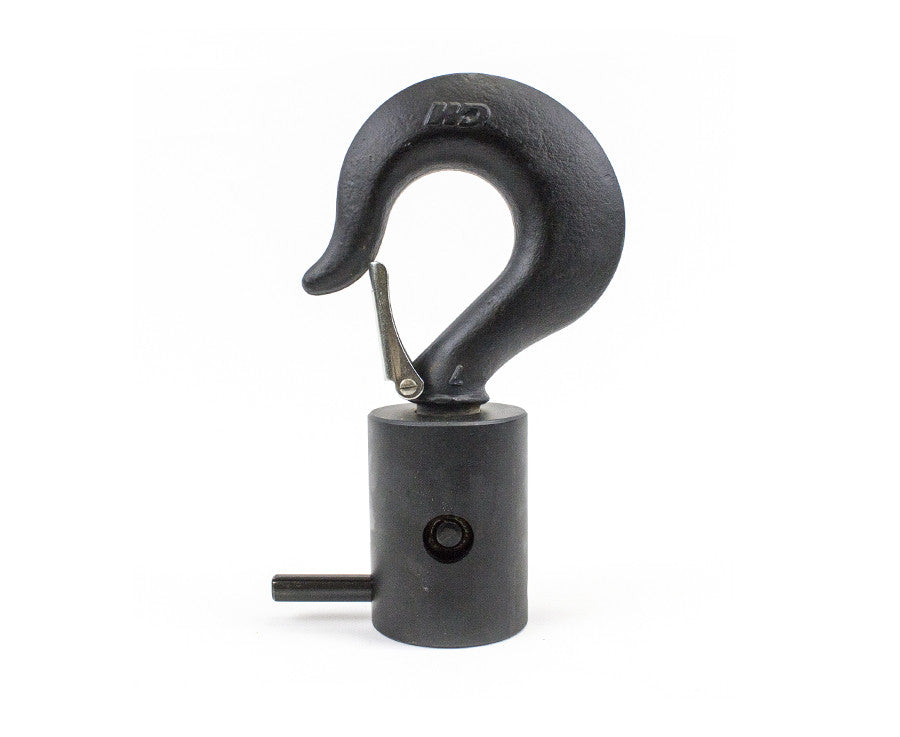

  • Lodestar RRS 2 Ton - swivel LatchGate hook (standard) - imagen 4

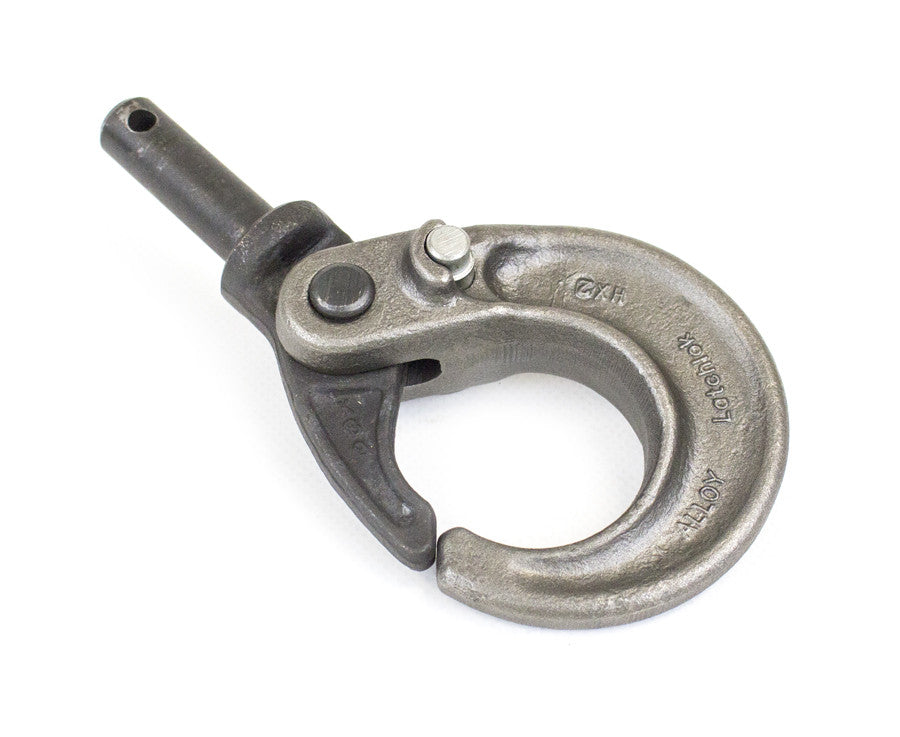

  • Lodestar RRS 2 Ton - CM swivel LatchLok hook (upgrade) - imagen 5
  • MTN Double Hook Chain Hoist Bag MPDH16S - imagen 6

CM Lodestar Next Gen RRS 2 Ton Single Reeve - Electric Chain Hoist

CM |
SKU: 427251-60-NC-HV2
$5,646.66
  • Shipping: 5-7 business days
  • CM Warranty: Lifetime on hoist
  • 2 Ton on a Single Fall: Rated for 4,000 lb, 16 ft/min at 60 Hz with a 2 HP motor and 10 mm load chain.
  • Built for Touring: IP65 protection, heavy-duty DC brake and a 5-pocket liftwheel for smooth lifting.
  • Safer Overload Protection: Adjustable clutch outside the load path prevents the load from slipping when the brake is not powered.
  • Complete Package: Ships with load chain, chain bag, factory chain bag bracket and your choice of connector.
View full description Technical data
Secure checkout
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Please select country
Please enter correct zip code

shipping

Test heading

What comes with your hoist

Price $5,646.66
Weight
  • Hoist
  • Load chain
  • Chain bag
  • Bracket
  • Hooks Swivel LatchGate (standard)
  • Power / control
  • Handles

CM Lodestar Next Gen RRS 2 Ton Single Reeve Electric Chain Hoist

The CM Lodestar Next Gen RRS is a 4,000 lb (2 ton) electric chain hoist built for concert touring, theater, live events and rental fleets. It lifts at 16 ft/min with a 2 HP motor on a single fall of 10 mm load chain, runs on 230/460V three-phase power and has a shortest distance between hooks of 24.8 in. (630 mm).

Every hoist ships as a complete package: 10 mm zinc-plated load chain for your selected lift (60, 80, 90 or 100 ft), the matching chain bag (MPDH 25S for 60 ft, MPDH 32S for 80 and 90 ft, MPDH 36S for 100 ft), a factory-installed chain bag bracket, your choice of power/control connector and optional Hoist Spring Loaded Handles V2. Units come prepped with our standard swivel LatchGate hooks by our CM-certified technicians.

Why the Lodestar RRS

  • 2 ton capacity on a single fall of 10 mm load chain
  • Adjustable clutch outside the load path, which prevents the load from slipping during an overload when the brake is not powered
  • Heavy-duty DC brake and 5-pocket liftwheel for smoother lifting and longer chain life
  • IP65 protection with composite cord grips, continuous gaskets and O-rings against water entry
  • Lifetime grease-lubricated gearbox with helical gearing, so no oil changes are required

Why single-reeved?

The RRS delivers a 2-ton lifting capacity using a single fall of 10 mm load chain instead of the two falls typically used on a double-reeved 2-ton hoist. Using less chain helps reduce overall weight, making the hoist easier to transport, handle and rig.

Ideal for

Concert touring, theater, live event production, rental companies and entertainment rigging that need a 2 ton chain motor in a single-reeved configuration.

Custom Options Available

Other hooks, lift lengths, electrical configurations or fleet quantities: request a quote and our CM-certified technicians will prep your hoists to spec.

Related resources

CM-ET Lodestar manual (PDF) · CM Lodestar RRS video · Next Gen Lodestar parts · Chain hoist maintenance tips · MTN mobile hoist service · Guide to MTN chain hoist bags · Build-A-Hoist quoting tool · CM Lodestar lubricant guide · CM Lodestar current draw chart · Lodestar serial number system · The meaning behind the name "Lodestar" · Hoist servicing (Part 1) · Hoist servicing (Part 2) · Q&A: CM on the 2-ton single-reeved Lodestar

Safety: Always install, operate, inspect and maintain the hoist according to CM documentation and the requirements of the lifting application. Never exceed the rated capacity. Not for lifting people.

Why buy your CM hoist from MTN

CONFIGURED TO YOUR SPECIFICATIONS

Every hoist is inspected and configured by our CM-certified technicians prior to shipment, with ongoing parts availability and service support

Request a quoteContact Us

  • CM-Certified Technicians:

    Hooks, control handles and connectors are configured to your requirements before the hoist is dispatched.

  • On-Site Hoist Service:

    On-site inspection and repair from the MTN Hoist Service team.

  • Next Gen Parts Availability:

    Genuine replacement parts in stock and ready to ship.

  • Fleet & volume orders

    Expanding your rental inventory? Contact us about multi-hoist packages, including road cases.

Related Products

Explore chain hoists, controllers and accessories for concerts, theater, touring productions and professional entertainment rigging.

View all

Frequently Asked Questions

What is the difference between the CM Lodestar Next Gen RRS 2 Ton Single Reeve and a double-reeved 2 ton hoist?
The RRS reaches 2 ton capacity on one fall of 10 mm load chain instead of two. With less chain than a double-reeved 2 ton hoist for the same lift, it is lighter to transport and easier to rig. It lifts at 16 ft/min with a 2 HP motor.
What is included with the CM Lodestar Next Gen RRS 2 Ton Single Reeve?
Each hoist ships with 10 mm zinc-plated load chain for your selected lift (60, 80, 90 or 100 ft), the matching chain bag (MPDH 25S for 60 ft, MPDH 32S for 80 and 90 ft, MPDH 36S for 100 ft), a factory-installed chain bag bracket, standard swivel LatchGate hooks and your chosen connector.
Which connector should I choose for the CM Lodestar Next Gen RRS 2 Ton Single Reeve?
Choose the connector that matches your power and control system: Dual Twist (L16-20 power with L14-20 control), C7 or P14. The L14-20 versions add an auxiliary individual control. Choose No Connectors if you will fit your own. The hoist runs on 230/460V three-phase power.
What hook and handle options are available for the CM Lodestar Next Gen RRS 2 Ton Single Reeve?
Every hoist comes prepped with standard swivel LatchGate hooks. CM Latchlok hooks and rigid hook suspensions are available on request through a quote. Handles are optional: choose No Handles or Hoist Spring Loaded Handles V2 when you configure the hoist.
What protection rating does the CM Lodestar Next Gen RRS 2 Ton Single Reeve have?
The CM Lodestar Next Gen RRS is rated IP65, with composite cord grips, continuous gaskets and O-rings that keep water out of the motor body. CM states it meets the applicable sections of ASME B30.16, ANSI/NFPA 70, OSHA, TÜV and the CE Directive.
