Camlok™ TTR Girder Clamp
Product No. N51702552
Regular price
$2,475.00
$2,475.00
New Year Sale – Tiered Savings Sitewide
$25 off $250 – With Code
NEWYEAR25
$50 off $500 – With Code
NEWYEAR50
$100 off $1000 – With Code
NEWYEAR100
Sale ends soon…
Shipping calculator
Please enter correct zip code
Payment methods
Product details

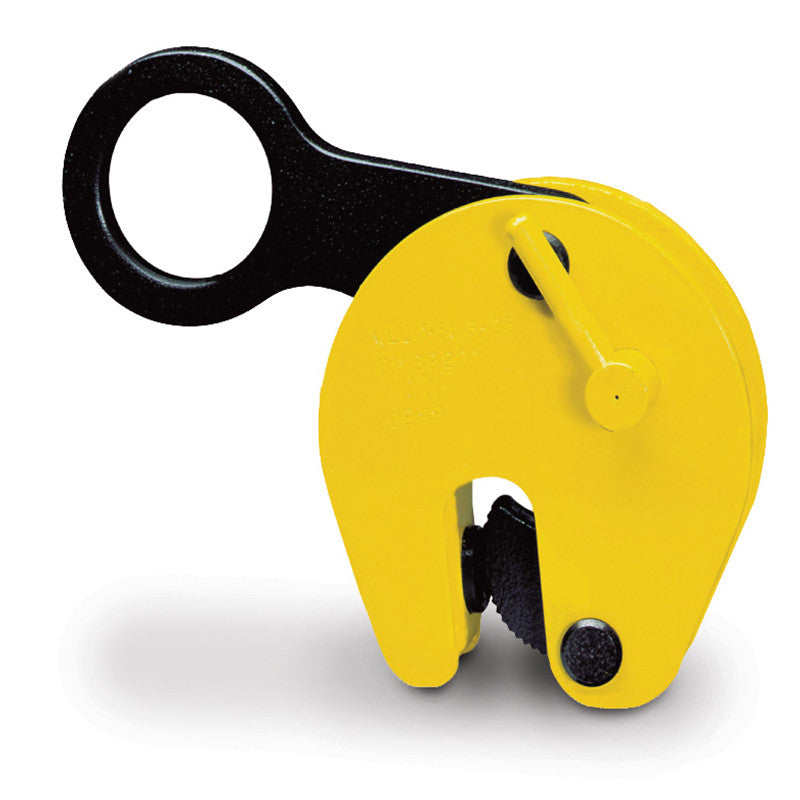

The Camlock TTR Girder Clamp can be used on girders and rolled steel joists up to a surface hardness of 300 Brinell (32HRc). TTR Girder Clamps are specially designed for handling structural beams with the flange in the vertical, or “H”, position.
- Used to lift and transport structural beams up to a surface hardness of 300 Brinell (32HRc) with the flanges in the upright position
- Versatile tool for transporting girders and joists. Can be used to lift and stack girders horizontally.
- The hook rings are designed to be as a near to the center of gravity as possible, resulting in a near horizontal lift
- Clamp is fitted with a cam-operated locking mechanism
- Short beams may be lifted with a single clamp, longer beams should use 2 clamps in combination with a spreader beam
- Design factor 4:1
| Product Code | Dimensions (in) * | Weight(lbs) | |||||
| A | B | C | D | E | F | ||
| TTR750 | 5.375 | 7.5 | 2 | 1.75 | 2.375 | 3.5 | 7.7 |
| TTR1500 | 7.5 | 10.625 | 2.625 | 2.625 | 3 | 4.875 | 22 |
| TTR3000 | 8.25 | 9.875 | 3.5 | 2.625 | 3.375 | 5 | 26.5 |

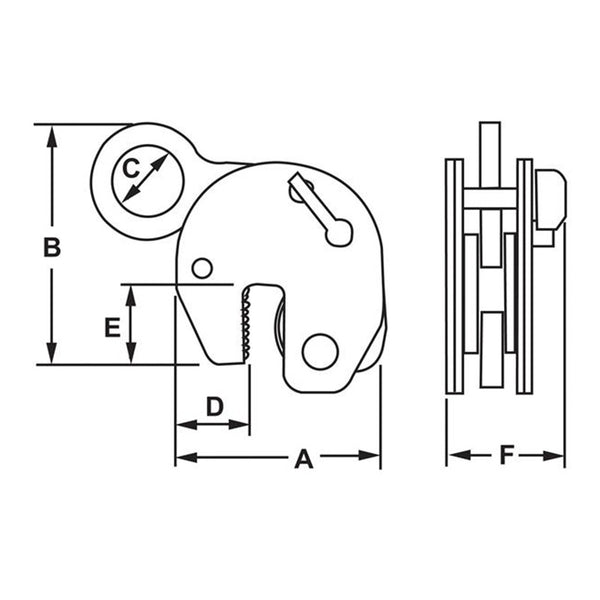

* Refer to product drawing above
| Product Code | Working Load Limit | Flange (in) | |
| Minimum (lbs) | Maximum (lbs) | ||
| TTR750 | 90 | 1,600 | 1/4 to 5/8 |
| TTR1500 | 350 | 3,300 | 1/4 to 1 |
| TTR3000 | 700 | 6,600 | 1/4 to 1 |
