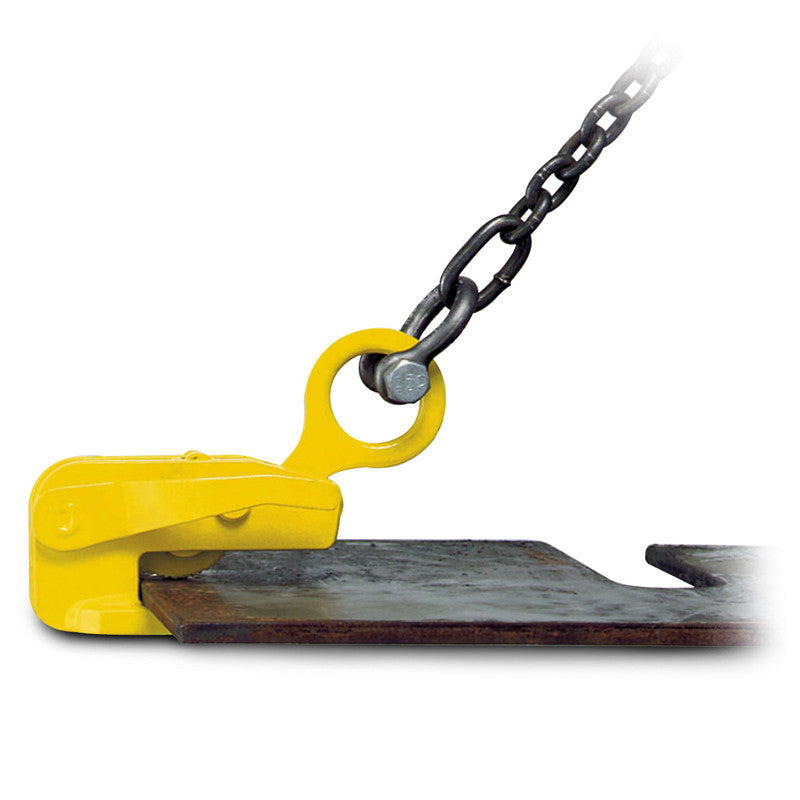

Product primary image

  • Camlok™ THS Plate Clamp– CM’s Camlok THS Plate Clamps can be used with single or two leg slings with a maximum angle of 60°. These clamps are designed to be used on structural steel plates up to a surface hardness of 300 Brinell (32HRc), providing that the plate can withstand the forces imposed. Trust in the Camlok brand to handle your materials safely and reliably every time. – Now available at MTN Shop US.
  • Camlok™ THS Plate Clamp– CM’s Camlok THS Plate Clamps can be used with single or two leg slings with a maximum angle of 60°. These clamps are designed to be used on structural steel plates up to a surface hardness of 300 Brinell (32HRc), providing that the plate can withstand the forces imposed. Trust in the Camlok brand to handle your materials safely and reliably every time. – Now available at MTN Shop US.

Camlok™ THS Plate Clamp

Product No. THS750

Regular price $2,282.00 $2,282.00
New Year Sale – Tiered Savings Sitewide
$25 off $250 – With Code NEWYEAR25
$50 off $500 – With Code NEWYEAR50
$100 off $1000 – With Code NEWYEAR100
Sale ends soon…

View our Promotion Policy

MINIMUM WLL
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

CM’s Camlok THS Plate Clamps can be used with single or two leg slings with a maximum angle of 60°. These clamps are designed to be used on structural steel plates up to a surface hardness of 300 Brinell (32HRc), providing that the plate can withstand the forces imposed. Trust in the Camlok brand to handle your materials safely and reliably every time.

  • Spring/lever-operated mechanism securely locks the clamp onto the horizontally positioned plate
  • Do not use to lift stainless steel, lead or copper
  • Can be used in single or 2 leg slings
  • Use lifting beams for longer plates
  • Clamp locks quickly onto the plate, enabling a single operator to set up the plate for lifting
  • Lifts and handles single sheet steel plates in the horizontal position
  • Useful for loading plates into guillotines, presses, punching machines and folding presses
  • Caution should be used so that maximum single angle of 60º is not exceeded
  • Design factor 4:1
Product Code Dimensions (in) * Weight (lbs)
A B C D E F G H
THS750 10.039 3.819 1.969 0.591 2.756 3.15 0.472 0.591 6.6
THS1500 13.189 4.724 2.756 0.787 3.15 3.543 0.591 0.669 13.2
THS4500 17.717 7.717 3.543 2.323 4.331 4.331 0.787 1.181 37.5

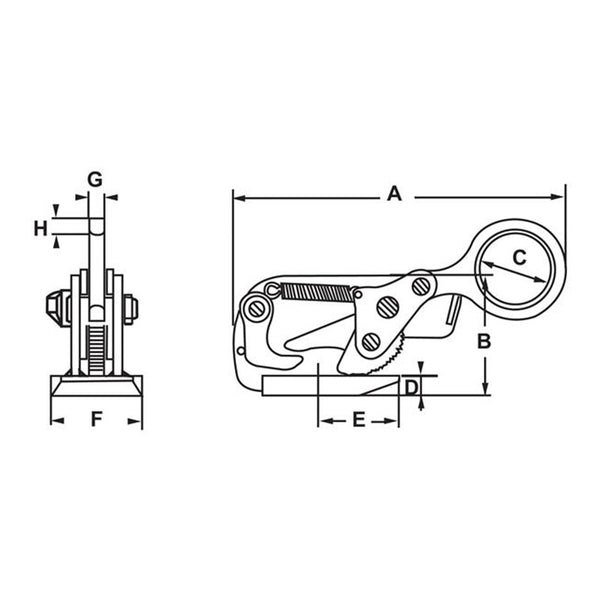

* Refer to product drawing above



Product Code Working Load Limit Jaw Capacity (in)
Minimum (lbs) Maximum (lbs)
THS750 90 1,600 0 to 3/4
THS1500 175 3,300 0 to 1-3/8
THS4500 500 9,900 0 to 1-3/4
