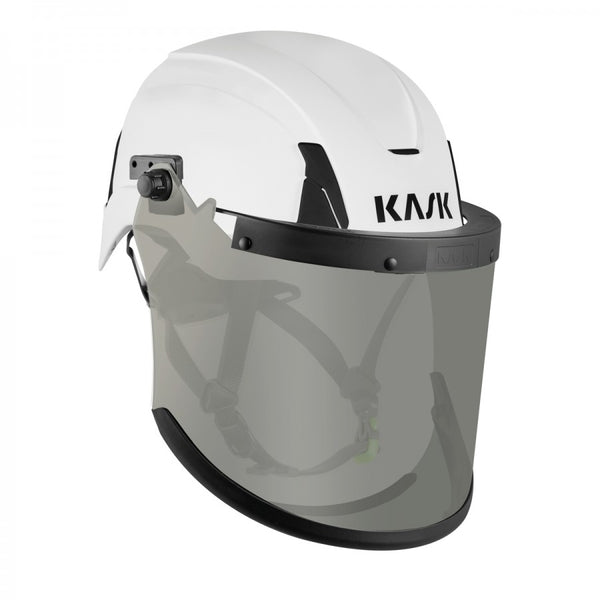

• ARC VISOR ATPV27 ERGO high-performance kask helmet visor featuring a smoke tint panoramic lens and 27.0 cal/cm² arc flash protection.

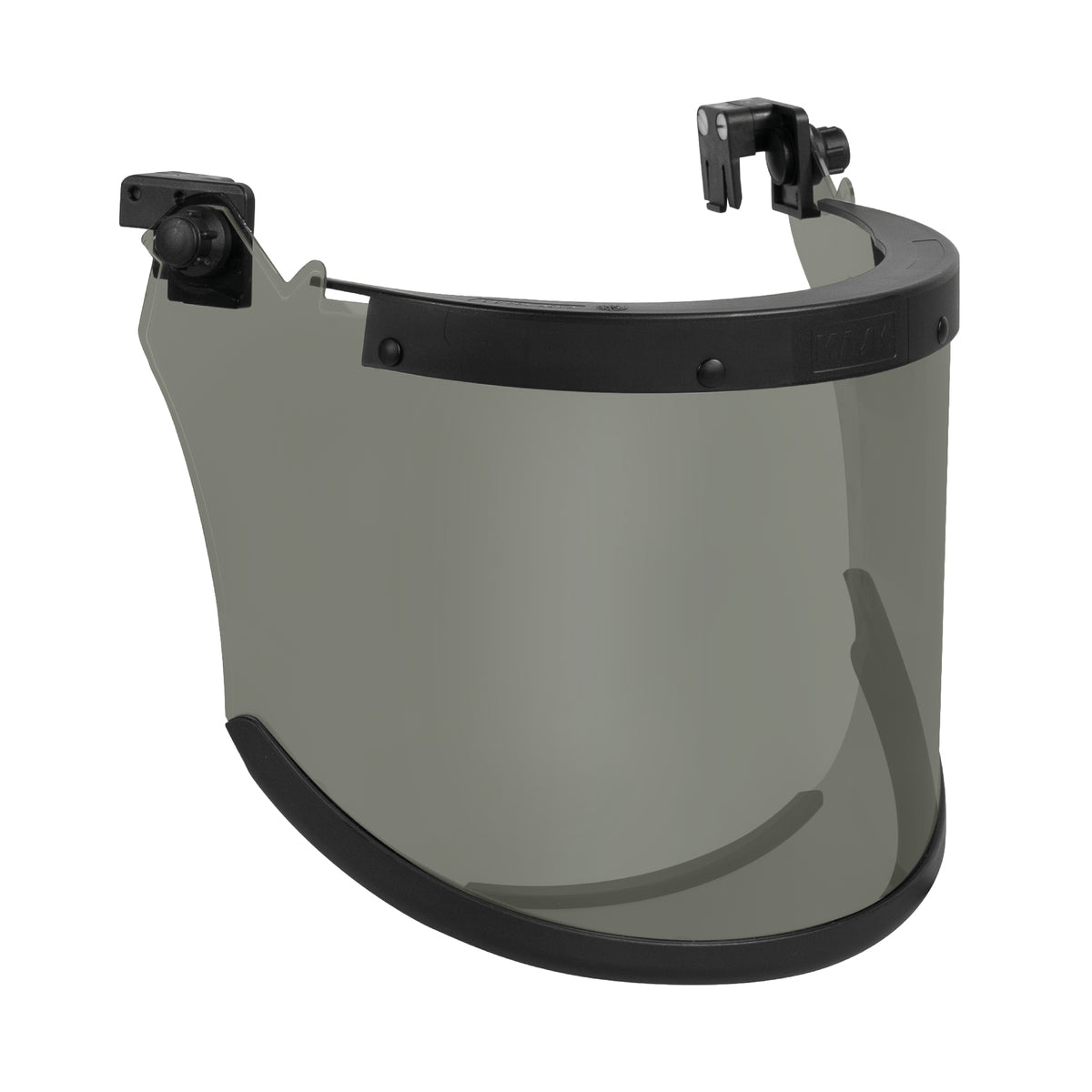

  • Front view of the ARC VISOR ATPV27 ERGO showing the see-through chin protection, compatible with the kask zenith x2 visor series for electrical safety. - imagen 2

KASK ARC Visor ATPV27 ERGO

KASK |
SKU: WVI00035
In stock
Free shipping over $50
3 Years Warranty
Smoke: Light Grey
  • Zenith X2 Compatible. Attaches directly to 30mm EURO slots — fits Zenith X2, Zenith X2 MAX, and Primero series
  • See-Through Chin Guard. Transparent chin protection for enhanced range of visibility and full-face arc flash coverage
  • CRI 95 Color Clarity. Exceptional color rendering for greater contrast and on-site visibility
  • Globally Certified. ANSI Z87.1, CSA Z94.3, EN ISO 16321-1, and DGUV GS-ET-29 certified arc flash face shield
View Full Description Technical Data

Accepted payment methods

amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Please select country
Please enter correct zip code

You may also like

Test heading

KASK ARC Visor ATPV27 ERGO

The KASK ARC Visor ATPV27 ERGO is a premium full face arc flash face shield engineered for professionals working on or near live electrical parts requiring higher-level thermal protection. Rated at 27 cal/cm² ATPV (ARC 3) per ASTM F2178, this KASK arc visor delivers superior protection against electric arc hazards while maintaining exceptional optical clarity. Recommended for use with a balaclava for maximum arc flash protection coverage.

The ERGO design introduces a unique See-Through Chin Protection — a transparent chin guard that extends the field of visibility beyond standard arc visors, making it the preferred choice for professionals who require both protection and situational awareness. The panoramic polycarbonate lens with CRI 95 color rendering minimizes viewing distortion while maximizing color contrast on the job. The reinforced Stable Carrier adds structural durability to the face shield for long-term reliability.

The KASK Arc Visor ATPV27 ERGO securely flips up and down and attaches directly to the 30mm EURO Slots of the KASK Zenith X2 (Zenith X2 MAX included) and Primero helmet series. Compatible with corrective glasses and designed for use with the full range of KASK hard hats and visors & face shields available at MTN Shop.

Key Features:

  • Full face arc flash protection — ATPV 27 cal/cm², ARC 3
  • See-Through Chin Protection — transparent chin guard for enhanced range of visibility
  • Panoramic polycarbonate lens — maximizes visibility with minimal distortion
  • CRI 95 — excellent color rendering for greater color contrast
  • Stable Carrier — reinforced face shield carrier for added durability
  • Securely flips up and down for quick one-handed operation
  • Attaches directly to 30mm EURO Slots
  • Compatible with KASK Zenith X2, Zenith X2 MAX, and Primero helmet series
  • Compatible with corrective glasses
  • Recommended for use with balaclava

Technical Specifications:

  • Product Code: WVI00035
  • Color: Smoke
  • Material: Polycarbonate
    ATPV: 27 cal/cm², ARC 3
    Weight: 0.81 lb
    Length: 8.46 inches

Compliance & Standards:

  • EN ISO 16321-1
  • DGUV GS-ET-29
  • ANSI Z87.1 + ASTM F217
  • CSA Z94.3
  • GS-ET-29 Box-Test — Class 2 / APC 2 / EN 1731
  • CE 1883 | 16321 KASK UL 2 E 6
  • GS-ET-29 8-2-2 APC 2
  • ATPV 12 cal/cm² | KASK Z87+ U6
  • ANSI / ISEA Z87.1 | CSA Z94.3 | KASK 2.0
  • ATPV 27 cal/cm², ARC 3

Frequently Asked Questions

What arc flash protection standard does the KASK Arc Visor ATPV27 ERGO meet?
The KASK Arc Visor ATPV27 ERGO meets ANSI Z87.1 + ASTM F2178, CSA Z94.3, EN ISO 16321-1, and DGUV GS-ET-29 (Box-Test Class 2 / APC 2 / EN 1731). It is rated at 27 cal/cm² ATPV, ARC 3 — making it a globally certified arc flash face shield for professional electrical work.
What is the difference between the KASK Arc Visor ATPV10 and the ATPV27 ERGO?
The ATPV10 is rated at 10 cal/cm² (ARC 1) and suits lower-risk electrical environments. The ATPV27 ERGO is rated at 27 cal/cm² (ARC 3) and is designed for higher-risk live electrical work. The ERGO model also features an exclusive See-Through Chin Protection for enhanced vertical visibility and a reinforced Stable Carrier for added structural durability — neither of which are present on the ATPV10.
Which KASK helmets is the Arc Visor ATPV27 ERGO compatible with?
The KASK Arc Visor ATPV27 ERGO attaches directly to the 30mm EURO Slots and is compatible with the KASK Zenith X2 (Zenith X2 MAX included) and Primero helmet series. No additional tools are required — it securely flips up and down for quick one-handed operation.
When should the KASK Arc Visor ATPV27 ERGO be retired or replaced?
The KASK Arc Visor ATPV27 ERGO has a 10-year lifespan from the date of manufacture and a 3-year guarantee from the date of purchase. It should be retired immediately if altered vision, scratches, or any signs of deterioration are present — as these reduce optical performance and arc flash protection. Sudden temperature changes and prolonged UV exposure can also accelerate deterioration.
