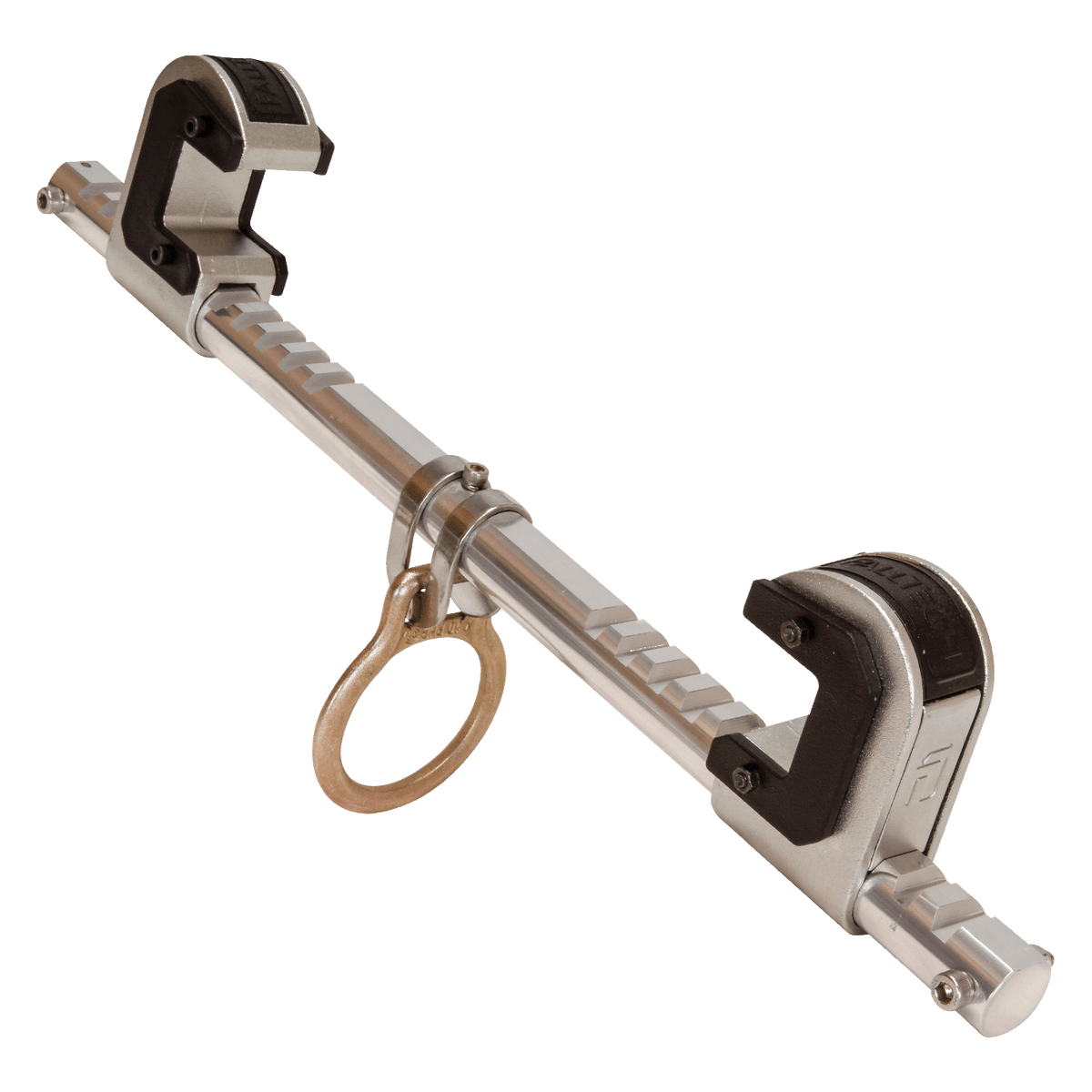

14" Trailing Beam Anchor with Dual-clamp Adjustment
Product No. 7530
Regular price
$299.50
$299.50
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Please enter correct zip code
Payment methods
Product details
14" Trailing Beam Anchor with Dual-clamp Adjustment
FEATURES
- Features aluminum crossbar and steel clamping jaws with nylon slider pads
- Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick.
- Dual adjusting jaws include concealed locking latches
- Alloy steel D-ring remains centered on crossbar
- For temporary mobile use on horizontal I-beams
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
D-ring: Plated alloy steel; 5,000 lb min. static strength
Crossbar: Aluminum alloy
Clamp Jaws: Plated alloy steel
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
