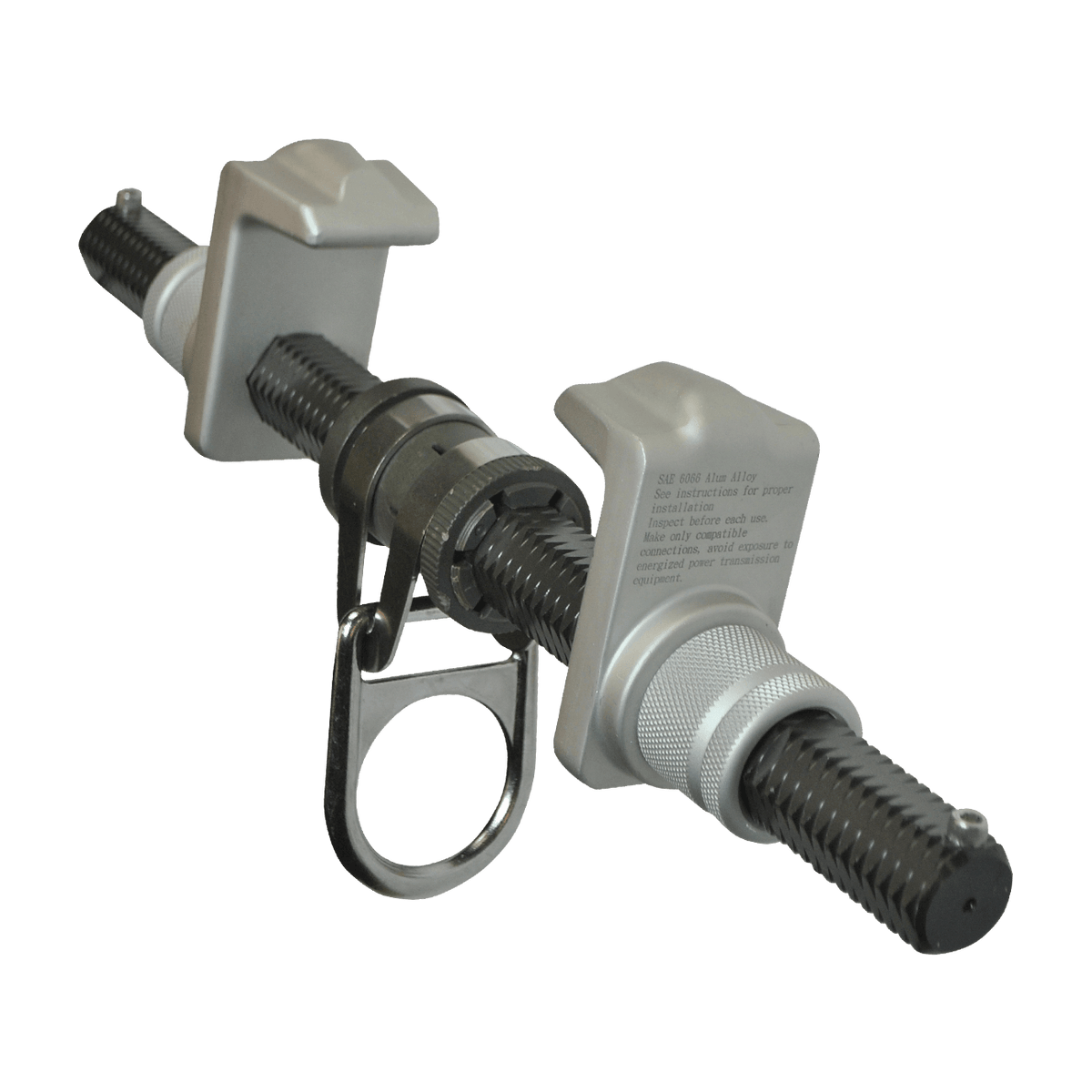

12 ¼" Trailing Beam Anchor with Dual-clamp Adjustment
Product No. 7533
Regular price
$322.00
$322.00
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Please enter correct zip code
Payment methods
Product details
12 ¼" Trailing Beam Anchor with Dual-clamp Adjustment
FEATURES
- Features threaded aluminum crossbar and jaws with knurled rings for fine adjustment
- Exclusive recessed under-jaw ball bearings provide improved mobility.
- Fits beam flanges from 3" to 12-1/4" wide and up to 1" thick
- For temporary mobile use on horizontal I-beams
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
D-ring: Plated alloy steel; 5,000 lb min. static strength
Crossbar: Aluminum alloy
Clamp Jaws: Aluminum alloy
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
