Adaptive Technologies Group Beam Clamp – Wood Beam Suspension With Swivel Eye

Adaptive Technologies Group Beam Clamp, Wood Beam Suspension with Swivel Eye

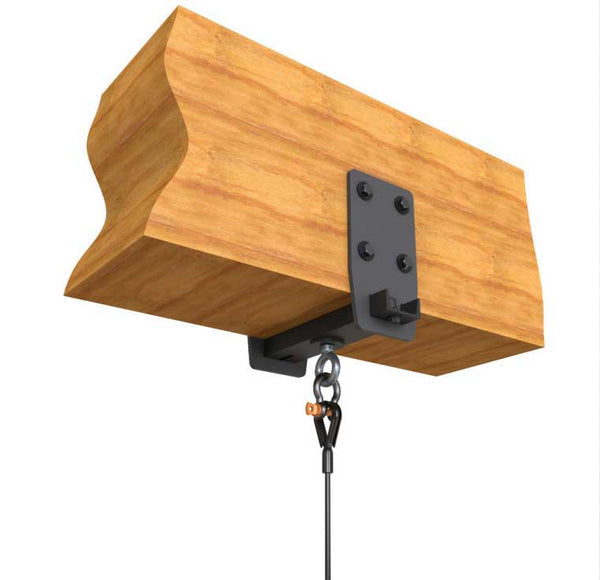

The Adaptive Technologies Group Wood Beam Clamp with Swivel Eye gives a load-rated overhead rigging point on structural wood and Glulam beams 9 in (230 mm) deep or more. Two models fit beam widths of 3 to 8 in (BC-W3-8-9) and 7 to 12 in (BC-W7-12-9).

The swivel eye sits in a load channel under the beam and turns toward the pull to limit side loading. The clamp is rated 980 lb at 0 degrees and 380 lb at 45 degrees, at a 5:1 design factor.

Key Features and Highlights

• Swivel eye: Turns toward the load direction to reduce side loading.
• Two width ranges: 3 to 8 in (76 to 200 mm) and 7 to 12 in beam widths.
• Beam depth 9 in (230 mm) or more: Made for regular structural wood and Glulam beams.
• 980 lb at 0 degrees: 380 lb at 45 degrees, 5:1 design factor.
• Three-piece steel design: Structural steel with a black powder coat.

What's in the Box

• 2 side plates
• 1 load channel with swivel eye
• 2 locking angles with fasteners

Who Is This Product For?

Ideal for: Installers rigging loudspeakers and equipment from wood or Glulam overhead beams.

Important: Not for human suspension. Have a structural engineer review the beam before installation, and always install safety cables.

Specifications

• Part Numbers: BC-W3-8-9, BC-W7-12-9
• Beam Width: 3 to 8 in (BC-W3-8-9); 7 to 12 in (BC-W7-12-9)
• Beam Depth: 9 in (230 mm) or more
• WLL (Working Load Limit): 980 lb at 0 degrees; 380 lb at 45 degrees
• Design Factor: 5:1
• Material: Structural steel
• Finish: Black powder coat
