Adaptive Technologies Group Beam Clamp – Dual Hang Point

Adaptive Technologies Group Beam Clamp, Dual Hang Point

The Adaptive Technologies Group Dual Hang Point Beam Clamp is a channel-style clamp with two 5/8 in eye nuts that give two load-rated rigging points from one steel I-beam. Models cover flanges from 3 to 26 in wide.

Two hang points make it simple to bridle a load or rig direct loads and hitches from a single clamp.

Key Features and Highlights

• Two 5/8 in eye nuts: Two rigging points for direct loads, bridles and hitches.
• Flange widths 3 to 26 in: 3 to 8, 7 to 12, 12 to 17, 16 to 21 and 20 to 26 in models.
• Vertical WLL up to 2,100 lb (953 kg): Rating depends on width; see the table.
• 45 degree ratings stated: For example 944 lb (428 kg) on the BC7-12-2.

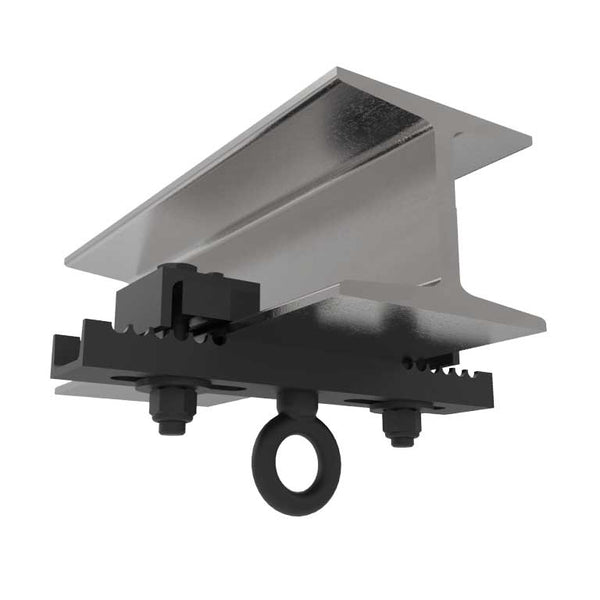

• Black or galvanized: Galvanized version for 3 to 8 in (BC3-8-G).

What's in the Box

• 1 channel clamp
• 2 eye nuts, 5/8 in

Who Is This Product For?

Ideal for: Installers bridling loudspeakers and equipment from structural steel I-beams.

Important: Do not exceed 45 degrees off vertical. Beam flanges must be parallel to the floor. Always install safety cables.

Specifications

• Part Numbers: BC3-8-2, BC7-12-2, BC12-17-2, BC16-21-2, BC20-26-2, BC3-8-G
• Beam Flange Width: 3 to 8, 7 to 12, 12 to 17, 16 to 21, 20 to 26 in
• 45 Degree WLL: 825 lb (375 kg) BC3-8-2; 944 lb (428 kg) BC7-12-2; 578 lb (261 kg) BC12-17-2; 354 lb (161 kg) BC20-26-2
• Design Factor: 4:1 (BC3-8-2); 5:1 (other models)
• Hang Points: Two 5/8 in eye nuts
• Finish: Black powder coat; galvanized (BC3-8-G)
