Adaptive Technologies Group Beam Clamp – Channel Style With One Suspension Point

Adaptive Technologies Group I-Beam Clamp, Channel Style with One Suspension Point

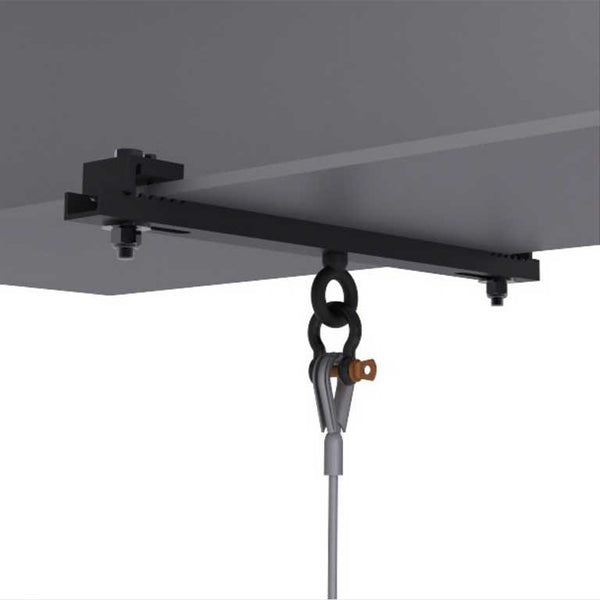

The Adaptive Technologies Group Channel Style Beam Clamp is a pre-engineered I-beam clamp that mounts flush under a steel beam flange and gives one centrally located swivel eye for hanging grids, clusters and arrays. This single hang point beam clamp suits permanent overhead rigging where no drilling into the structure is wanted.

Models cover 7 to 26 in flanges in black powder coat, with galvanized versions for outdoor non-marine use. Spacers let the clamp fit a range of flange thicknesses.

Key Features and Highlights

• Central swivel eye: Suspend from wire rope, rigging chain, span sets and more.
• Flange widths 7 to 26 in: 7 to 12, 12 to 17, 16 to 21 and 20 to 26 in models.
• Vertical WLL up to 1,600 lb (726 kg): Rating depends on width; see the table.
• Wood beams with BC-LAM-KIT: BC7-12 is rated 300 lb (136 kg) on wood beams with the adapter.
• Galvanized option: BC7-12-G and BC16-21-G for outdoor non-marine applications.

What's in the Box

• 1 beam clamp channel with swivel eye
• 2 locking angle plates
• 2 flat washers, 5/8 in
• 2 nyloc nuts, 5/8-11
• Spacers (BC12-17, BC16-21, BC7-12-G)

Who Is This Product For?

Ideal for: Installers who need I-beam clamps for hanging grids, loudspeaker clusters, line arrays and equipment from overhead steel beams in arenas, venues, warehouses and houses of worship.

Important: Do not exceed 45 degrees off the hang point. Beam flanges must be parallel to the floor. Always install safety cables.

Specifications

• Part Numbers: BC7-12, BC12-17, BC16-21, BC20-26, BC7-12-G, BC16-21-G
• Beam Flange Width: 7 to 12, 12 to 17, 16 to 21, 20 to 26 in
• Wood Beams: 300 lb (136 kg) with BC-LAM-KIT
• Design Factor: 5:1
• Finish: Black powder coat; galvanized (BC7-12-G, BC16-21-G)
