OZ Lifting Stainless Steel Push Beam Trolley

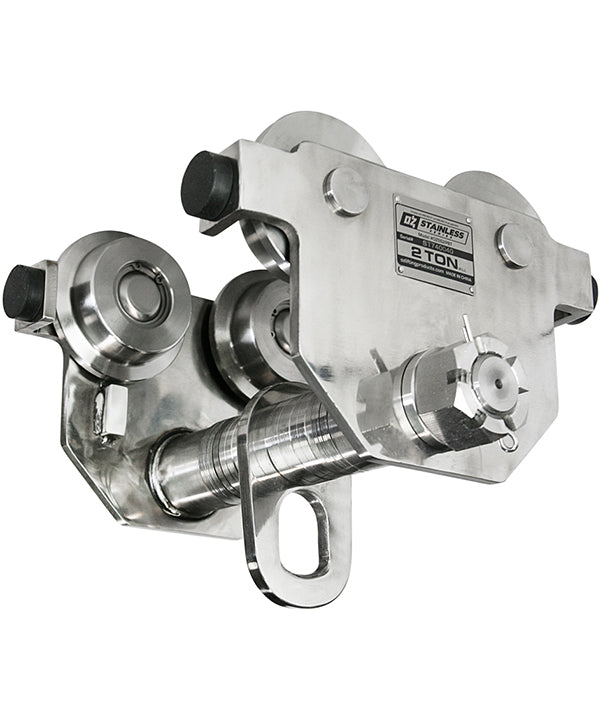

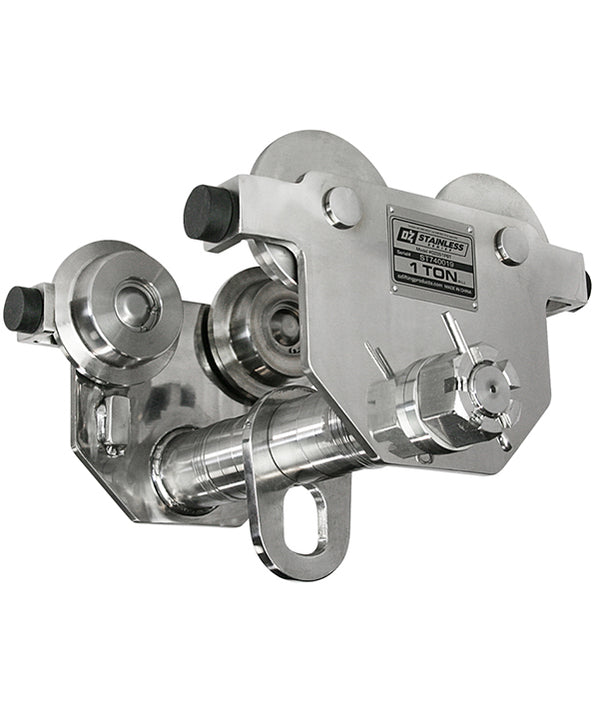

The Oz Lifting stainless steel push beam trolley is designed for use with manual or powered hoists to easily move a load along a beam. The trolley is shaped to fit most I, S and W beams.
FEATURES
- Lightweight, robust construction
- Fits to most I, S, and W-Beams
- Type 304 stainless steel for corrosive resistance
- Precision ball bearing trolley wheels
- Anti-drop plate
- Stainless steel ID tag
- Individual test certificate and serial number
Standards – CE, AS1418.2, ASME B30.11, ASME B30.16
(for use with manual or powered hoists)
Specifications
| OZSS05PBT | OZSS1PBT | OZSS2PBT | OZSS3PBT* | OZSS5PBT* | ||
| Safe Working Load (tons) | .5 | 1 | 2 | 3 | 5 | |
| Adjustable Flange Width (in) | 2-6 | 2.5-8.00 | 3.5-8 | 4-6 | 4.5-6 | |
| Max Flange Thickness (in) | 1.06 | 1.06 | 1.06 | 1.10 | 1.14 | |
| Product Dimensions (in) | A | 10 | 13 | 13.22 | 14.56 | 15.15 |
| B | 7.83 | 9.68 | 10.86 | 13.07 | 14.84 | |
| C | 1.6 | 9 | 10.55 | 12.44 | 14.17 | |
| D | 4 | 5 | 5.9 | 6.8 | 7.8 | |
| Minimum Radius Curve (ft) | 2.62 | 3.28 | 3.60 | 4.26 | 4.59 | |
| Net weight (lbs) | 18.7 | 26.5 | 43 | 64 | 97 |
* Push Beam Trolleys 3 Ton and 5 Ton available. Special order.
Geared Beam Stainless Trolleys .5 Ton – 5 Ton available. Special order.
Wheel and bail dimensions
Dimensions are for reference only and subject to change without notice.
| OZSS05PBT | OZSS1PBT | OZSS2PBT | |
| E (in) | 3.10 | 3.75 | 4.25 |
| F (in) | 2.23 | 2.87 | 3.38 |
| G (in) | 3.50 | 4.60 | 5.66 |
| H (in) | 1.23 | 1.69 | 2.09 |
| I (in) | 0.59 | 0.64 | 0.82 |
| J (in) | 0.97 | 1.18 | 1.48 |
| K (in) | 1.98 | 2.94 | 3.34 |
| L (in) | 0.30 | 0.87 | 1 |
