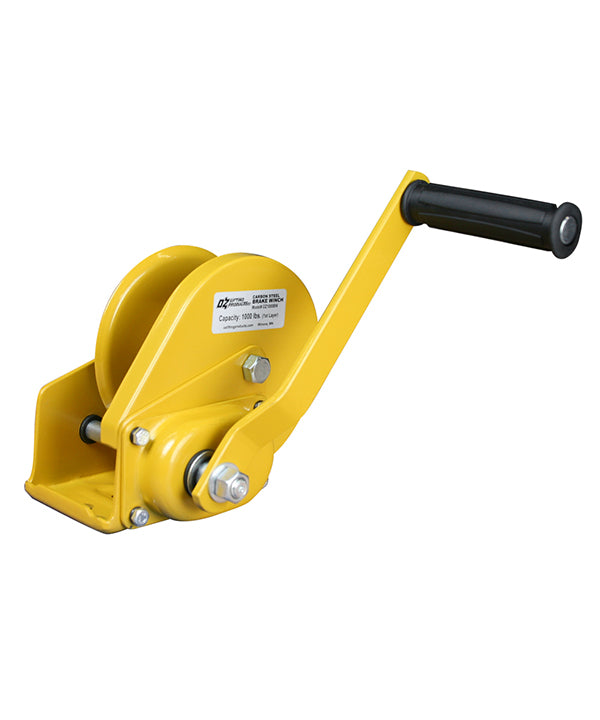

• OZ Lifting Hand Brake Winch– The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models. – Now available at MT

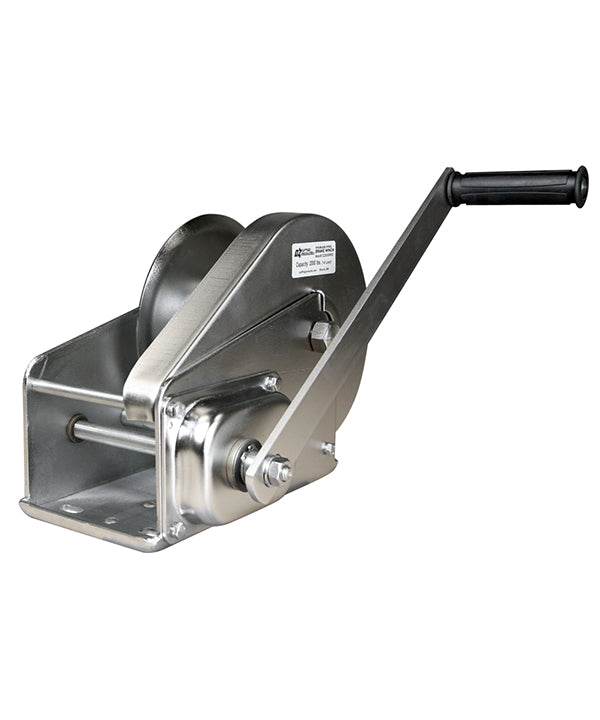

  • OZ Lifting Hand Brake Winch– The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models. – Now available at MT - imagen 2

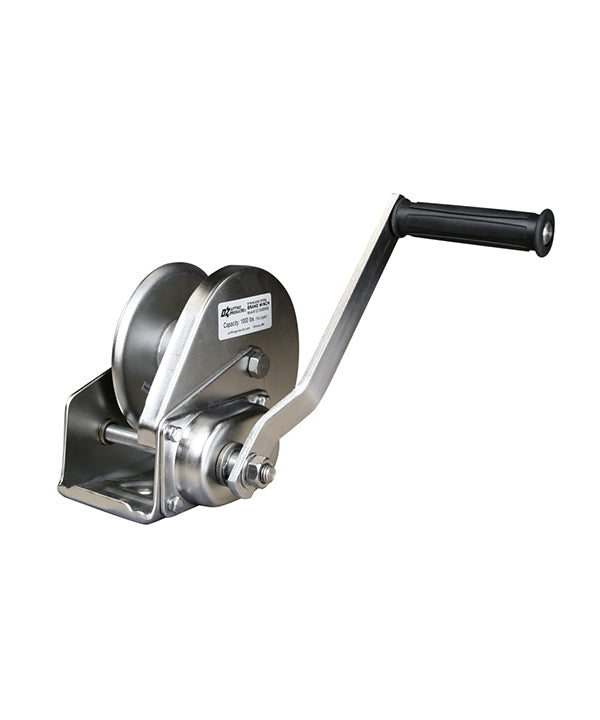

  • OZ Lifting Hand Brake Winch– The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models. – Now available at MT - imagen 3

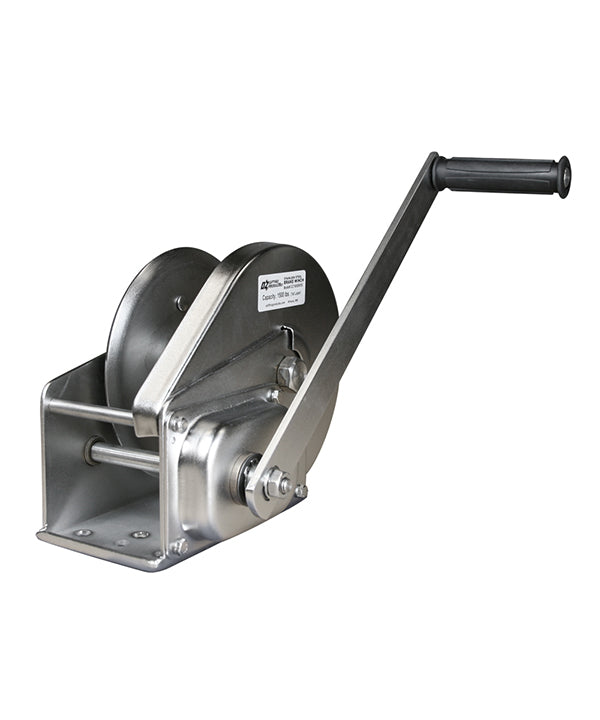

  • OZ Lifting Hand Brake Winch– The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models. – Now available at MT - imagen 4
  • OZ Lifting Hand Brake Winch– The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models. – Now available at MT - imagen 5

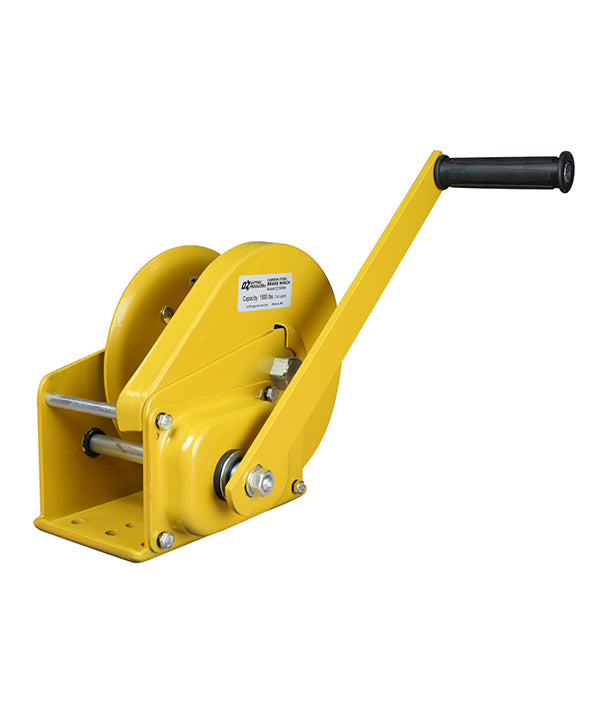

  • OZ Lifting Hand Brake Winch– The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models. – Now available at MT - imagen 6

OZ Lifting Hand Brake Winch

OZ Lifting |
SKU: OZ1000BW
In stock
Capacity: 1000 lbs
Metal: Carbon Steel

Accepted payment methods

amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
OZ Lifting Hand Brake Winch
Incl. VAT
+
OZ Lifting 1/4" Galvanized / Stainless Steel Cable Assembly with Ball End Fitting and Swivel Hook with Latch
Incl. VAT
Please select country
Please enter correct zip code
Test heading

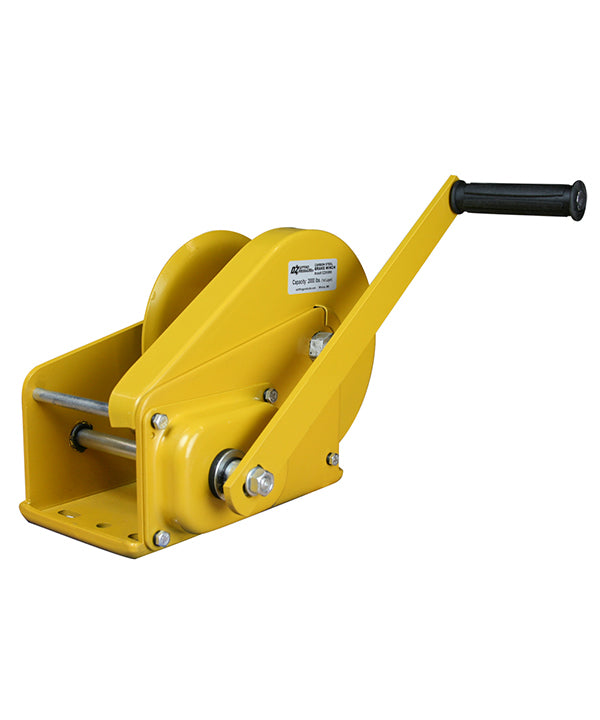

OZ Lifting Hand Brake Winch

The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models.

FEATURES

  • All steel construction
  • Automatic weatherproof Weston brake
  • Compact design
  • Dual cable anchor point
  • Ergonomic rubber handle
  • Large diameter drum
  • Multiple frame mounting positions
  • Rubber handle
  • Fully enclosed gearing
  • High gear ratio
  • Solid machined gear
  • Test certificate & serial number

*Cable not included  - To add cable please refer to the following product 1/4" Galvanized / Stainless Steel Cable Assembly with Ball End Fitting and Swivel Hook with Latch for Hand Brake Winch





Standards – CE
Cable/Drum Capacity 1st layer (ft) Mid drum (ft) Full drum (ft)
OZ1000BW – OZ1000BWSS with 1/8” wire rope 7 74 140
OZ1000BW – OZ1000BWSS with 3/16” wire rope 5 34 75
OZ1500BW – OZ1500BWSS with 3/16” wire rope 7 66 140
OZ1500BW – OZ1500BWSS with 1/4” wire rope 5 27 89
OZ2000BW – OZ2000BWSS with 1/4” wire rope 8 36 85
OZ2000BW – OZ2000BWSS with 5/16” wire rope 7 22 52
Load Rating (lbs)
OZ1000BW – OZ1000BWSS 1000 750 500
OZ1500BW – OZ1500BWSS 1500 1250 750
OZ2000BW – OZ2000BWSS 2000 1500 1000



    OZ1000BW – OZ1000BWSS OZ1500BW – OZ1500BWSS OZ2000BW – OZ2000BWSS
Safe Working Load (lbs)   1000 1500 2000
Gear Ratio   4.2:1 5:1 10:1
Dimensions (in) A 6.22 7.73 8.35
B 7.20 9.36 11.10
C 3.46 4.21 5.00
D 8.26 12.68 12.99
E 1.06 1.06 1.06
F 10.43 10.63 11.81
G 1.98 2.30 2.52
H 4.29 4.29 4.29
I 1.90BW – 1.60BWSS 2.38 3.00
J 5.33 7.00 7.09
K 10.20 15.31 15.35
L 5.98 6.89 7.87
M 0.12 0.14 0.16
Net Weight (lbs)   8.15 16.97 22.06
