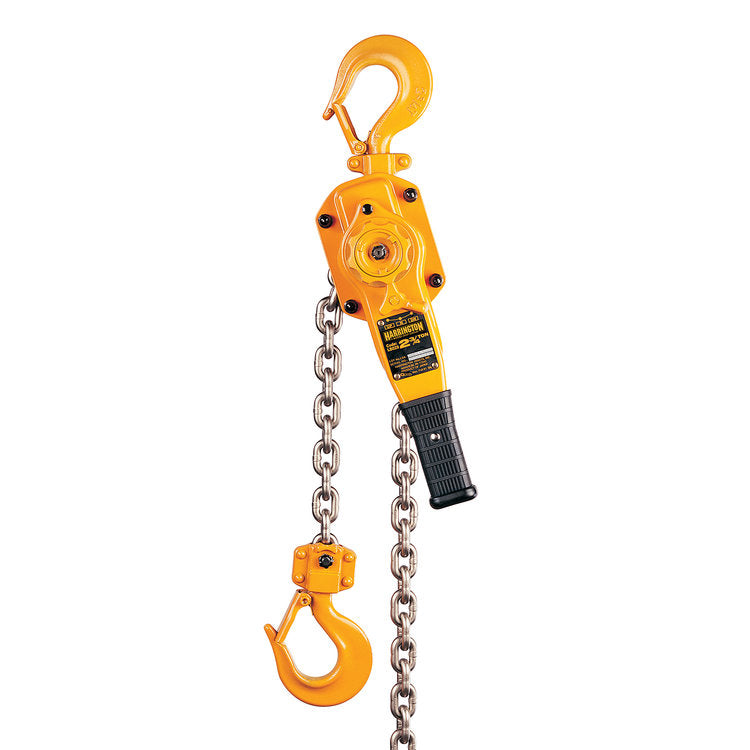

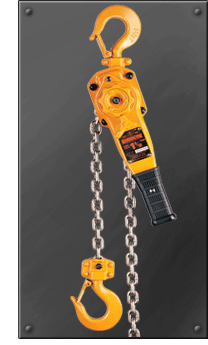

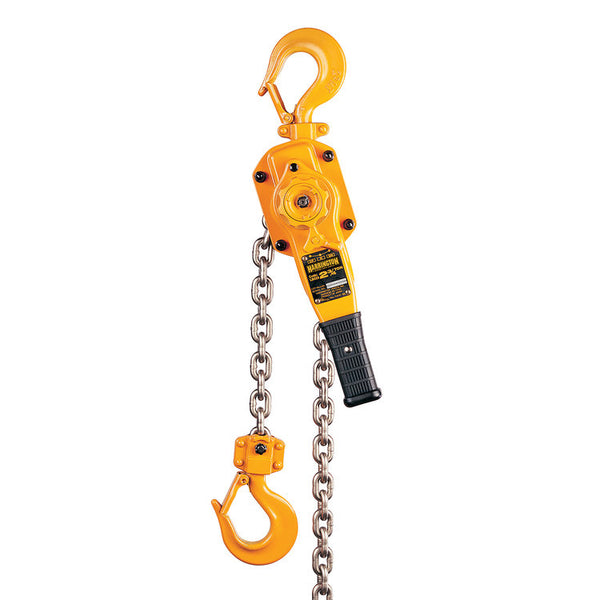

Harrington LB Lever Hoists 0.75–10 Ton
Harrington LB Lever Hoists 0.75–10 Ton $554.88
  • Harrington Hoist: LB Lever Hoists 0.75-10 Ton– Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. – Now available at MTN Shop US.
  • Harrington Hoist: LB Lever Hoists 0.75-10 Ton– Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. – Now available at MTN Shop US. - imagen 2
  • Harrington Hoist: LB Lever Hoists 0.75-10 Ton– Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. – Now available at MTN Shop US. - imagen 3

Harrington LB Lever Hoists 0.75–10 Ton

Harrington Hoists |
SKU: LB008-5
$554.88
Capacity: 0.75t
Chain Lift: 5'
  • Rated the #1 selling lever hoist in the U.S. All-steel construction, lighter than comparable aluminum models.
  • Weston-style load brake with 4 braking surfaces. Totally enclosed mechanism protects against dirt and moisture.
  • Slip clutch prevents overloading. Load limit warning handle alerts you before lifting beyond rated capacity.
  • Factory load tested to 125% of rated capacity. ASME B30.21 compliant, 2-year warranty, capacities 0.75-10 tons.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Please select country
Please enter correct zip code

You may also like

Test heading

Harrington LB Lever Hoists 0.75–10 Ton

The Harrington LB Lever Hoist is a compact, heavy-duty come along hoist designed for lifting, pulling, positioning, and tensioning loads. Available in capacities from 0.75 ton to 10 tons with 5 to 20 ft chain lifts, the LB series is built for demanding rigging, material handling, construction, maintenance, and industrial applications.

With a compact, low-headroom design, Harrington LB lever hoists can be used horizontally, vertically, inverted, or at other load angles. The rugged all-steel construction, short handle, and 15-degree recovery strokes make the LB series well suited for close-quarter applications where reliable manual lifting and pulling equipment is required.

Key Features

  • Available in 0.75 ton to 10 ton capacities
  • 5 ft to 20 ft chain lift options
  • Compact, low-headroom design for close-quarter applications
  • Suitable for lifting, pulling, positioning, and tensioning loads
  • Can be used horizontally, vertically, inverted, or at other load angles
  • Rugged, all-steel construction with low overall weight
  • Positive Weston-style load brake with moisture-resistant brake pads and four braking surfaces
  • Totally enclosed brake mechanism protects against dirt and moisture
  • Machined, heat-treated, split-load double-reduction gears for long service life
  • Short steel handle with 15-degree recovery strokes for operation in confined spaces
  • Patented spring-loaded freewheel mechanism allows easy load-chain adjustment
  • Standard rubber grip for non-slip operation

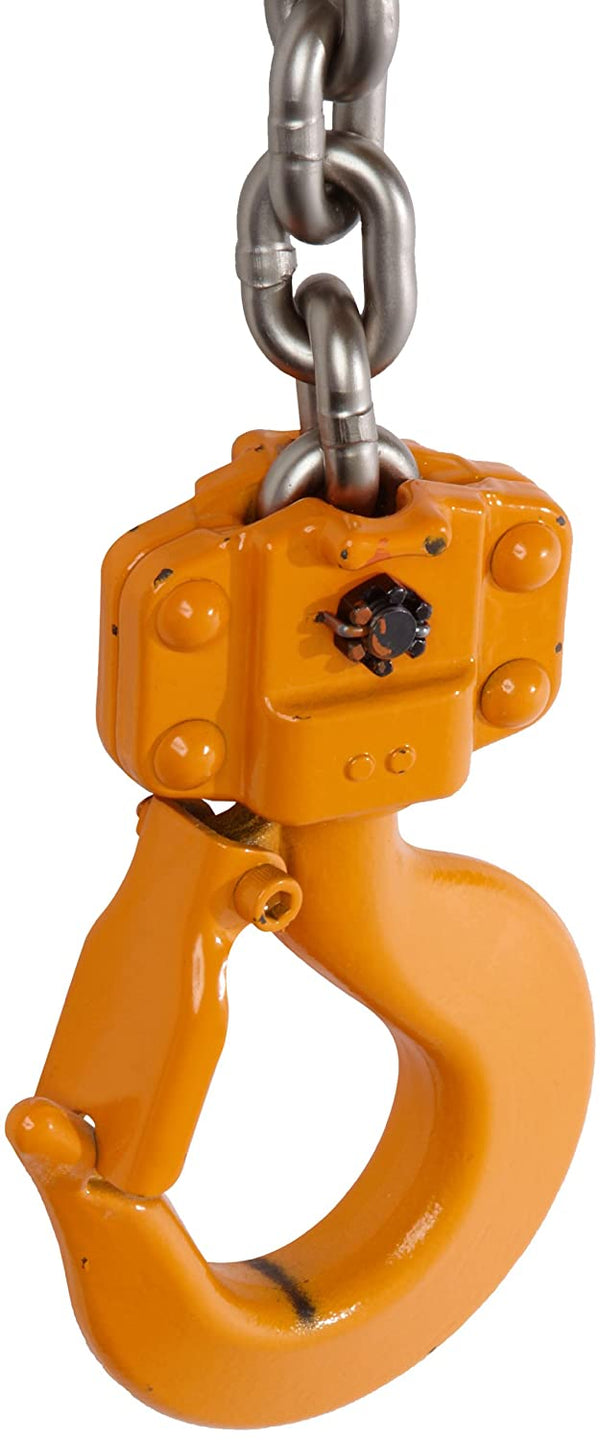

  • Forged and heat-treated alloy steel hooks rotate 360°
  • Slip clutch helps prevent lifting loads beyond rated capacity
  • Top hook extender positions the hoist body away from the attachment point
  • Load limit warning handle alerts the operator when the hoist is being overloaded

Technical Data

  • Capacities: 0.75 ton–10 ton
  • Chain lift: 5 ft–20 ft
  • Load chain: Grade 100 heat-treated, nickel-plated for corrosion resistance
  • Every hoist is factory load tested to 125% of rated capacity in accordance with ASME B30.21 requirements
  • Two-year warranty from date of shipment against defects in workmanship or materials

Harrington LB Come Along Hoist Applications

The Harrington LB series is designed for applications that require a portable manual lever hoist or come along hoist for lifting, pulling, positioning, and tensioning. Its compact design makes it suitable for close-quarter rigging, equipment installation, maintenance, construction, and material-handling applications.

Explore the full range of Harrington hoists at MTN Shop.

COMPLETE YOUR SETUP

RELATED PRODUCTS

Explore compatible accessories and related products.

Frequently Asked Questions

What does the slip clutch on the Harrington LB Lever Hoist actually protect against?
It prevents the hoist from being used to lift loads beyond its rated capacity, engaging before the hoist mechanism itself takes damage from an overload, rather than relying solely on the operator's judgment to avoid exceeding the rated limit.
Can the Harrington LB Lever Hoist be used at any angle, or only vertically?
Yes. It's designed to be used horizontally, vertically, inverted, or at any other load angle, giving flexibility for rigging setups that don't allow a straight vertical pull.
Why does the freewheel mechanism matter for everyday use?
The patented spring-loaded freewheel mechanism lets you quickly take up slack in the load chain by hand instead of cranking the lever repeatedly for adjustment, while still safeguarding against accidental freewheeling if the hoist is already under load.
Is the load chain corrosion resistant for outdoor or humid job sites?
Yes. It uses Grade 100 heat-treated load chain that's nickel-plated specifically for corrosion resistance, making it suitable for outdoor or damp environments in addition to standard indoor industrial use.
