Adaptive Technologies Group SAS-500-WM-G Steerable Line Array Wall Mount

Adaptive Technologies Group SAS-500-WM-G Galvanized Line Array Wall Mount

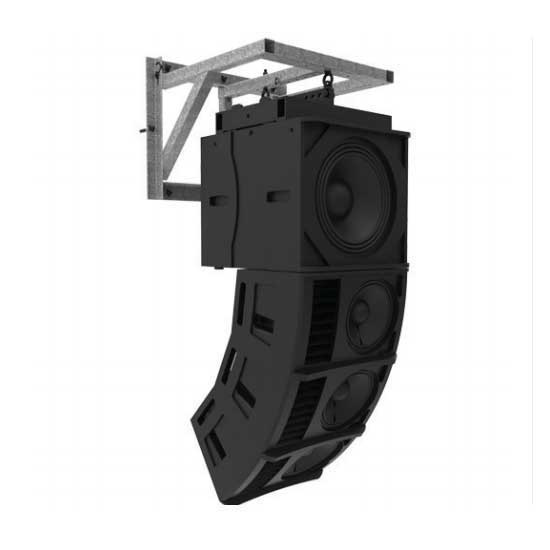

The Adaptive Technologies Group SAS-500-WM-G Steerables Line Array Wall Mount installs and aims small and mid-size line arrays on either side of a stage or building. Its galvanized steel frame suits outdoor installs.

The array hangs from its own rigging points for down tilt, and an upper cross arm pans it up to 45 degrees left or right. Rated 500 lb (227 kg) at 5:1.

Key Features and Highlights

• 500 lb (227 kg) WLL: 5:1 design factor.
• Pan up to +/- 45 degrees: Upper cross arm aims the array.
• Galvanized steel: Silver, for outdoor use.
• Tilt by array grid: Uses the array's own rigging.

What's in the Box

• 1 Steerables wall mount frame
• 1 cross arm kit

Who Is This Product For?

Ideal for: Installers mounting line arrays beside outdoor stages and buildings.

Important: Always install safety cables.

Specifications

• Part Number: SAS-500-WM-G
• WLL (Working Load Limit): 500 lb (227 kg)
• Design Factor: 5:1
• Pan: Up to +/- 45 degrees
• Material: Structural alloy steel
• Finish: Galvanized, silver
