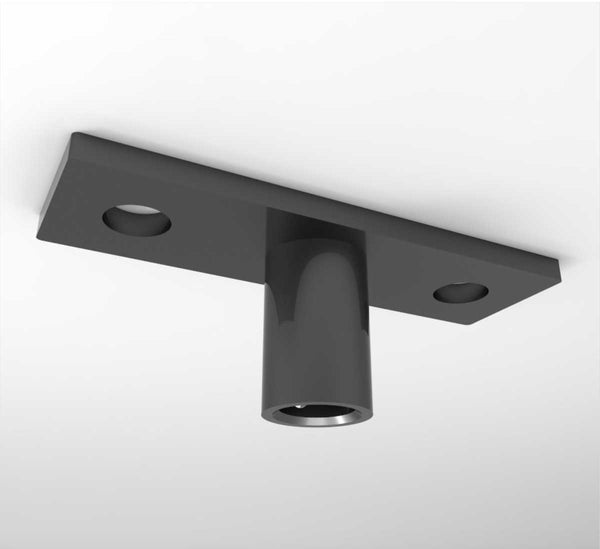

Adaptive Technologies Group MP-500NPS-TA 80lb Channel Tube Adapter

Adaptive Technologies Group MP-500NPS-TA 80 lb Channel Tube Adapter

The Adaptive Technologies Group MP-500NPS-TA connects standard 1/2-14 Schedule 40 pipe to channel strut, so speakers and other objects can hang from strut on off-the-shelf pipe.

It holds up to 80 lb (36.3 kg) at a 5:1 design factor, with a recommended pipe length of no more than 48 in.

Key Features and Highlights

• Pipe to strut: 1/2-14 Schedule 40 NPT/NPS pipe.
• 80 lb (36.3 kg) WLL: 5:1 design factor.
• 48 in max pipe: Recommended length.
• Sound isolation pad: Included.

What's in the Box

• 1 tube adapter, 1/2-14 NPT/NPS
• 1 sound isolation pad
• 2 flange bolts, 1/2-13 x 1.5 in
• 2 channel retainer nuts, 1/2-13
• 1 set screw, 1/4-20

Who Is This Product For?

Ideal for: Installers hanging light loudspeakers from channel strut.

Important: Keep pipe length to 48 in or less. Always install safety cables.

Specifications

• Part Number: MP-500NPS-TA
• Pipe Size: 1/2-14 Schedule 40 NPT/NPS, up to 48 in
• WLL (Working Load Limit): 80 lb (36.3 kg)
• Design Factor: 5:1
• Material: Structural steel, black powder coat
• Shipping Weight: 1.2 lb (0.55 kg)
