Adaptive Technologies Group MM-100X100-AP 100mm X 100mm Adapter Plate

Adaptive Technologies Group MM-100X100-AP 100 x 100 mm Adapter Plate

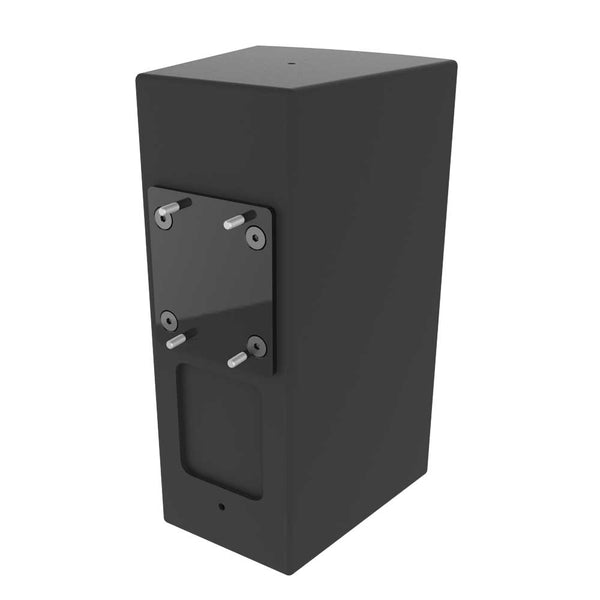

The Adaptive Technologies Group MM-100X100-AP adapts loudspeakers with a 100 x 100 mm square mounting pattern to the rectangular pattern of Adaptive MultiMount speaker mounts.

The plate takes 5/16 in screws in the rectangular pattern, bolts to the speaker with the included M10 screws, and is rated 60 lb (27.2 kg) at a 10:1 design factor.

Key Features and Highlights

• 100 x 100 mm to MultiMount: Adapts the square pattern.
• 60 lb (27.2 kg) WLL: 10:1 design factor.
• Easy 4 screw install: Metric and imperial screws included.
• Compatible mounts: MM-024-BT, MM-060, WM-0-15-60 and MM-3RDX-18.

What's in the Box

• 1 adapter plate
• 4 screws, 5/16 x 1 in
• 4 screws, M10 x 40 mm
• 4 flat washers, 5/16 in
• 4 nyloc nuts, 5/16 in

Who Is This Product For?

Ideal for: Installers fitting 100 mm pattern loudspeakers to MultiMount mounts.

Important: Always install safety cables.

Specifications

• Part Number: MM-100X100-AP
• Pattern: 100 x 100 mm to MultiMount rectangular pattern
• WLL (Working Load Limit): 60 lb (27.2 kg) max
• Design Factor: 10:1
• Compatible Mounts: MM-024-BT, MM-060, WM-0-15-60, MM-3RDX-18
• Material: Structural steel alloy, black powder coat
