Adaptive Technologies Group MM-018 60lb Indoor Ceiling Mount

Adaptive Technologies Group MM-018 Indoor Ceiling Speaker Mount

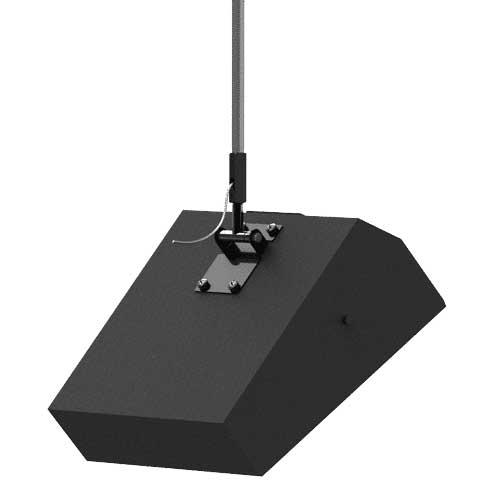

The Adaptive Technologies Group MM-018 supports and aims cinema surround speakers with the standard 2-3/4 x 5 in four-point pattern from overhead ceiling grids, using tube extensions and adapters.

It gives up to 360 degrees of pan and 180 degrees of tilt and is rated 75 lb (34.1 kg) at a 5:1 design factor.

Key Features and Highlights

• 75 lb (34.1 kg) WLL: 5:1 design factor.
• Pan 360, tilt 180 degrees: Independent, no-drift controls.
• 2-3/4 x 5 in pattern: Standard surround pattern.
• Single-person install: Weather resistant for covered outdoor use.
• Pipe extensions: Use PIPE-500NPS tubes; safety cables come with the tubes.

What's in the Box

• 1 speaker adapter assembly
• 1 coupler adapter, 3/4-10 thread and 1/2 NPT
• 2 set screws, 1/4-20
• 1 hex bolt, 3/8-16 x 3/4 in
• 1 left-hand hex bolt, 3/8-16 x 3/4 in
• 2 star washers, 3/8 in

Who Is This Product For?

Ideal for: Cinemas and auditoriums hanging surround loudspeakers from ceiling grids.

Important: Pipe extensions are sold separately. Always install safety cables.

Specifications

• Part Number: MM-018
• WLL (Working Load Limit): 75 lb (34.1 kg) max
• Design Factor: 5:1
• Pan: 360 degrees
• Tilt: 180 degrees
• Mounting Pattern: 2-3/4 x 5 in
• Material: Structural steel alloy, black powder coat
