Adaptive Technologies Group FC 3/16” Wire Rope Sling

Adaptive Technologies Group FC 3/16 in Wire Rope Sling Pair

The Adaptive Technologies Group FC 3/16 in Wire Rope Sling is a pre-assembled, fixed-length pair of galvanized wire rope slings for overhead rigging, trussing and beam lifting. Each kit contains two cables, so a load can be hung from two matched points.

Lengths are measured inside loop to inside loop and held to close tolerances. Each cable is rated 840 lb (382 kg) at a 5:1 design factor.

Key Features and Highlights

• Sold in pairs: Two fixed-length wire rope assemblies per kit.
• 840 lb (382 kg) per cable: Load rated at a 5:1 design factor.
• 3/16 in galvanized cable: Black finish, loops at each end.
• Quick links included: Two 3/8 in quick links and a 0.5 ml tube of thread lock for permanent installs.
• Standard lengths: 10, 14, 18, 22 and 30 in (FC-010 to FC-030); custom lengths are available.

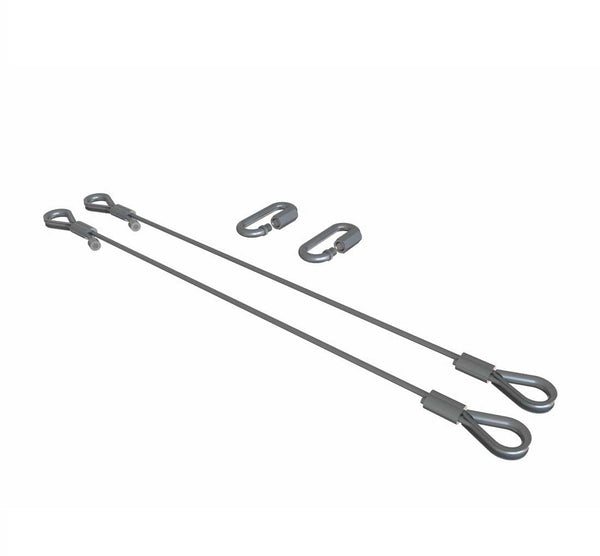

What's in the Box

• 2 fixed-length 3/16 in wire rope assemblies
• 2 quick links, 3/8 in
• 1 tube of thread lock, 0.5 ml

Who Is This Product For?

Ideal for: Installers suspending loudspeakers and equipment from two points on beams, truss or grids.

Important: Rated for indoor use only. FC-072 is not listed on the supplier datasheet; confirm it before ordering. Always install safety cables.

Specifications

• Part Numbers: FC-010, FC-014, FC-018, FC-022, FC-030, FC-072

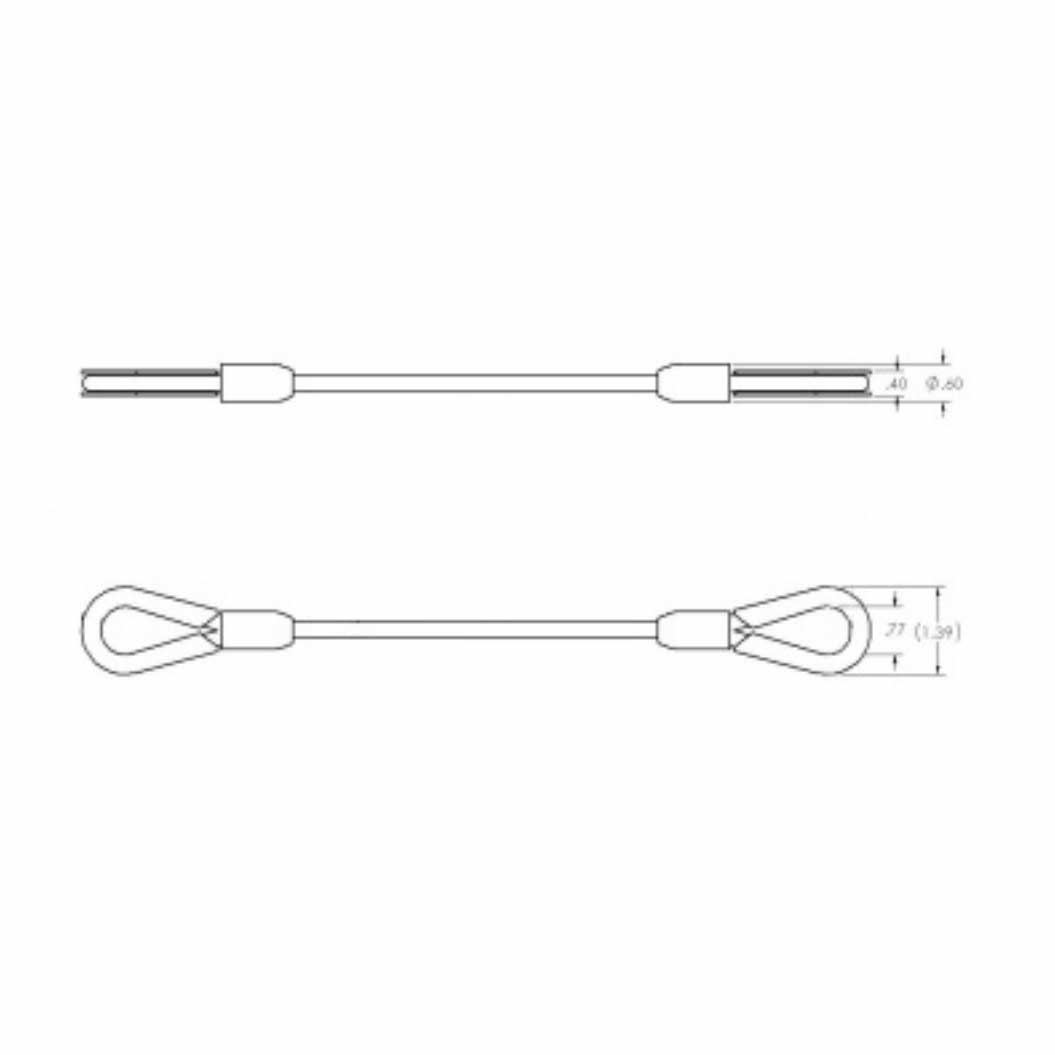

• Length: 10 in (254 mm), 14 in (356 mm), 18 in (457 mm), 22 in (559 mm), 30 in (762 mm)
• Diameter: 3/16 in
• WLL (Working Load Limit): 840 lb (382 kg) per cable
• Design Factor: 5:1
• Material: Galvanized wire rope
• Color: Black
