Adaptive Technologies Group Double Pulley Speaker Tilt Cable Kit Assembly

Adaptive Technologies Group Steerables Double Pulley Tilt Cable Kit

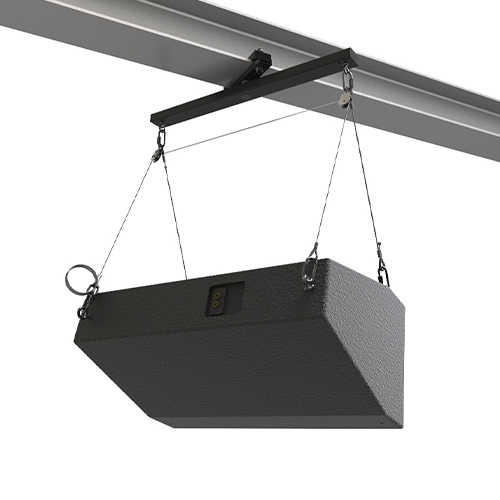

The Adaptive Technologies Group Steerables Double Pulley Tilt Cable Kit suspends a loudspeaker from overhead and tilts it precisely with an adjustable pull back cable running through two pulleys. Two fixed cable lengths are offered: 18 and 22 in.

The kit is rated at a 10:1 design factor, with the clutch lock at 5:1, and is available in black or silver.

Key Features and Highlights

• Double pulley: Two pulley assemblies for the pull back cable.
• Two lengths: 18 and 22 in fixed cables.
• 10:1 design factor: Clutch lock rated at 5:1.
• Anchor shackles included: Six shackles rated 600 lb (272 kg).
• Black or silver: Standard and custom assemblies.

What's in the Box

• 2 fixed cables, 3/16 in (420 lb / 191 kg each)
• 1 pull back cable, 1/8 in (200 lb / 91 kg)
• 6 anchor shackles (600 lb / 272 kg)
• 1 clutch lock assembly (220 lb / 100 kg)
• 2 pulley assemblies (210 lb / 95 kg)
• 6 cable ties
• 2 wire rope clips, 1/8 in

Who Is This Product For?

Ideal for: Installers hanging and aiming loudspeakers from grids and Steerables mounts.

Important: Always install safety cables.

Specifications

• Part Numbers: TCK2-018, TCK2-022
• Fixed Cable Length: 18, 22 in
• Design Factor: 10:1 (clutch lock 5:1)
• Fixed Cable WLL: 420 lb (191 kg) each, 3/16 in
• Pull Back Cable WLL: 200 lb (91 kg), 1/8 in
• Color: Black or silver
• Pack: 1 set per package
