Adaptive Technologies Group Adjustable Tilt Cable Kit Vertical Orientation

Adaptive Technologies Group Steerables Adjustable Tilt Cable Kit, Vertical Orientation

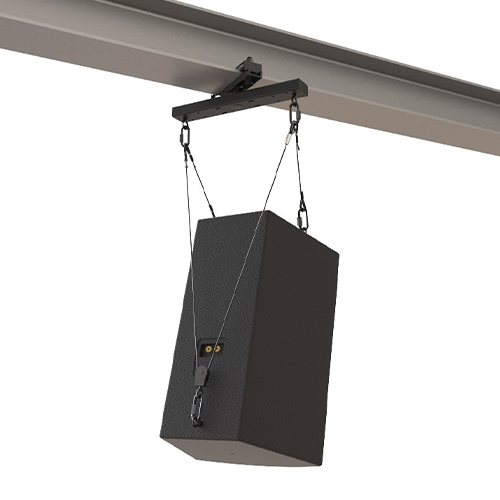

The Adaptive Technologies Group Steerables Tilt Cable Kit is a complete aircraft cable and pulley kit for suspending a loudspeaker from overhead and tilting it precisely with an adjustable pull back cable. Four fixed cable lengths are offered: 10, 14, 18 and 22 in.

Suspend from the top of the cabinet for slight down tilt, or from the back for steeper angles. The kit is rated at a 10:1 design factor, with the clutch lock at 5:1.

Key Features and Highlights

• Infinite tilt and locking: Adjustable pull back cable with a clutch lock.
• Four lengths: 10, 14, 18 and 22 in fixed cables.
• 10:1 design factor: Clutch lock rated at 5:1.
• Complete kit: Cables, quick links, clutch lock, pulley and thread lock.
• Close cable tolerances: Standard and custom assemblies, black or silver.

What's in the Box

• 2 fixed cables, 3/16 in (420 lb / 191 kg each)
• 1 pull back cable, 1/8 in (200 lb / 91 kg)
• 5 quick links, 3/8 in (2,200 lb / 1,000 kg)
• 1 clutch lock assembly (220 lb / 100 kg)
• 1 pulley assembly (210 lb / 95 kg)
• 1 tube of thread lock, 0.5 ml

Who Is This Product For?

Ideal for: Installers hanging and aiming loudspeakers from grids, GridLink beams and Steerables mounts.

Important: A 4-point suspension needs an extra pair of fixed-length cables. Always install safety cables.

Specifications

• Part Numbers: TCK-010, TCK-014, TCK-018, TCK-022
• Fixed Cable Length: 10, 14, 18, 22 in
• Design Factor: 10:1 (clutch lock 5:1)
• Fixed Cable WLL: 420 lb (191 kg) each, 3/16 in
• Pull Back Cable WLL: 200 lb (91 kg), 1/8 in
• Color: Black
• Pack: 1 set per package
