Adaptive Technologies Group 11 inch Extension Arm

Adaptive Technologies Group 11 inch Extension Arm

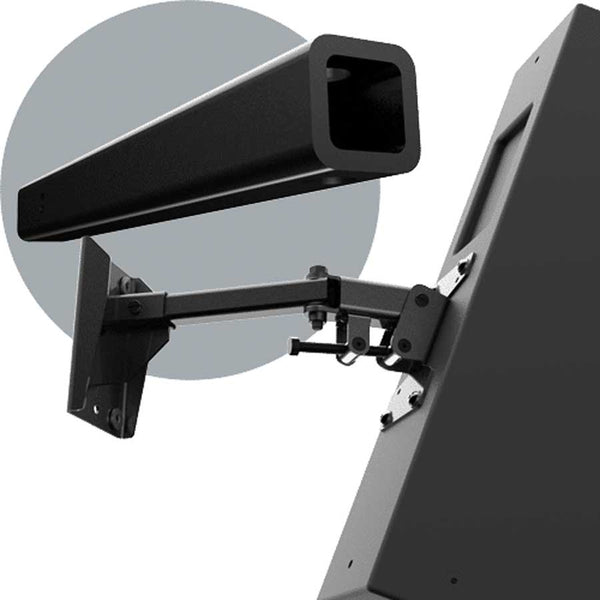

The Adaptive Technologies Group 11 inch Extension Arm replaces the standard arm on MultiMount wall mounts to move the loudspeaker further from the wall. The MM-060-EXT-11 extends the MM-060 reach to 9.41 to 12.16 in, and the MM-120-11ARM fits the MM-120.

The MM-060-EXT-11 is rated 50 lb (22 kg) and the MM-120-11ARM 77 lb (35 kg), both at a 5:1 design factor.

Key Features and Highlights

• More reach: MM-060 reach of 9.41 to 12.16 in with the MM-060-EXT-11.
• Load ratings: 50 lb (22 kg) MM-060-EXT-11; 77 lb (35 kg) MM-120-11ARM.
• 5:1 design factor: Structural steel alloy tube.
• Fits MultiMount: MM-060 and MM-120 wall mounts.
• Outdoor version: MM-060-EXT-11-Z with zinc undercoating.

What's in the Box

• 1 extension tube, 11 in

Who Is This Product For?

Ideal for: Installers who need extra clearance between a wall-mounted speaker and the wall.

Important: The extension lowers the rating of the mount; use the arm rating. MM-060-EXT-11-Z has no supplier page; confirm before ordering.

Specifications

• Part Numbers: MM-060-EXT-11, MM-120-11ARM, MM-060-EXT-11-Z
• Compatible Mount: MM-060 (MM-060-EXT-11, -Z); MM-120 (MM-120-11ARM)
• WLL (Working Load Limit): 50 lb (22 kg) MM-060-EXT-11; 77 lb (35 kg) MM-120-11ARM
• Design Factor: 5:1
• Reach (MM-060): 9.41 to 12.16 in
• Length: 11 in
• Material: Structural steel alloy
