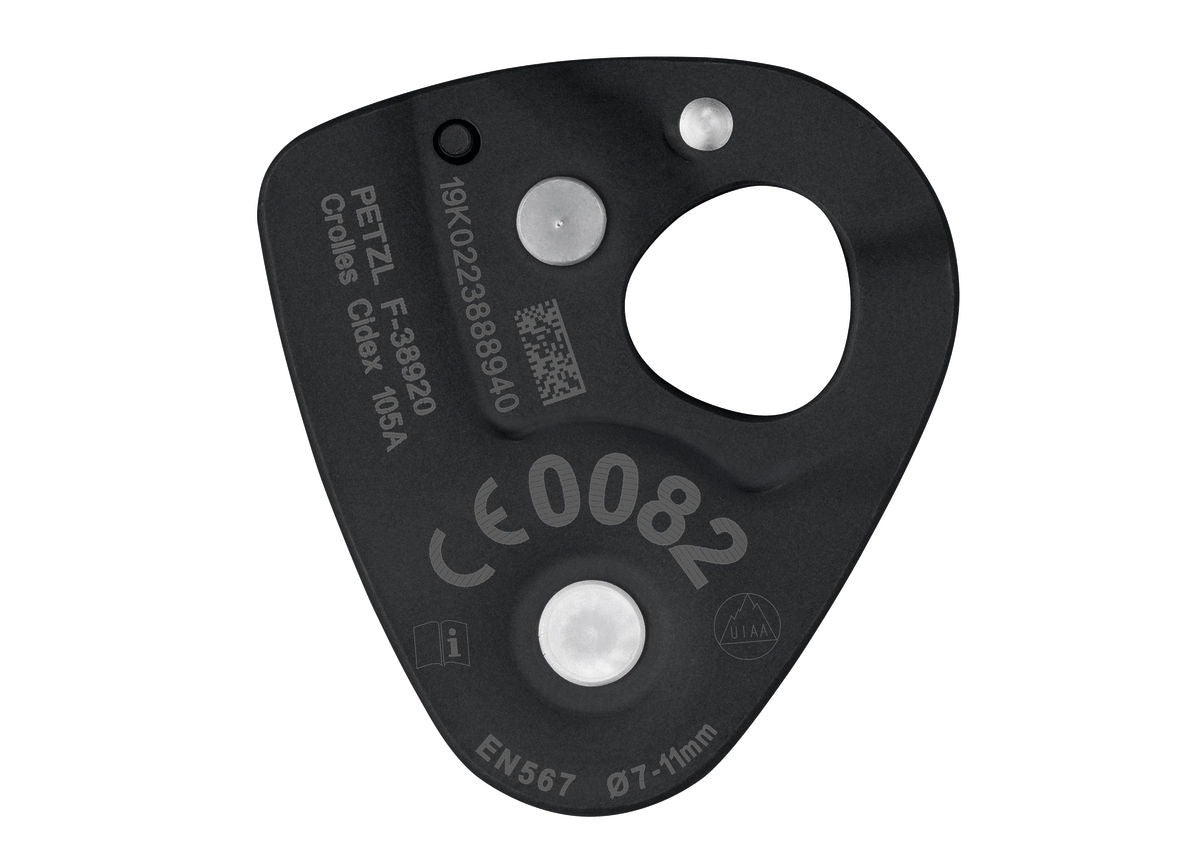

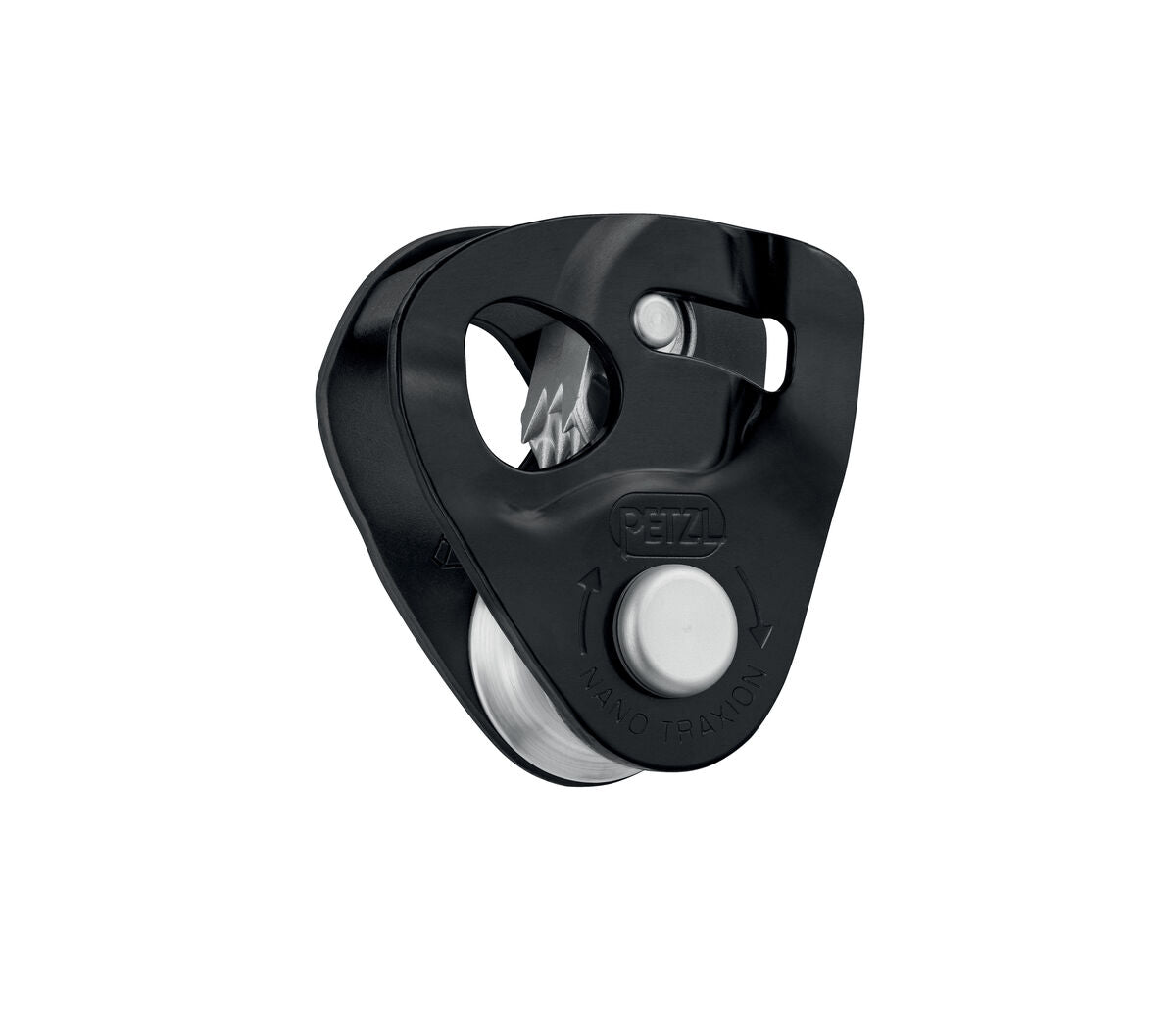

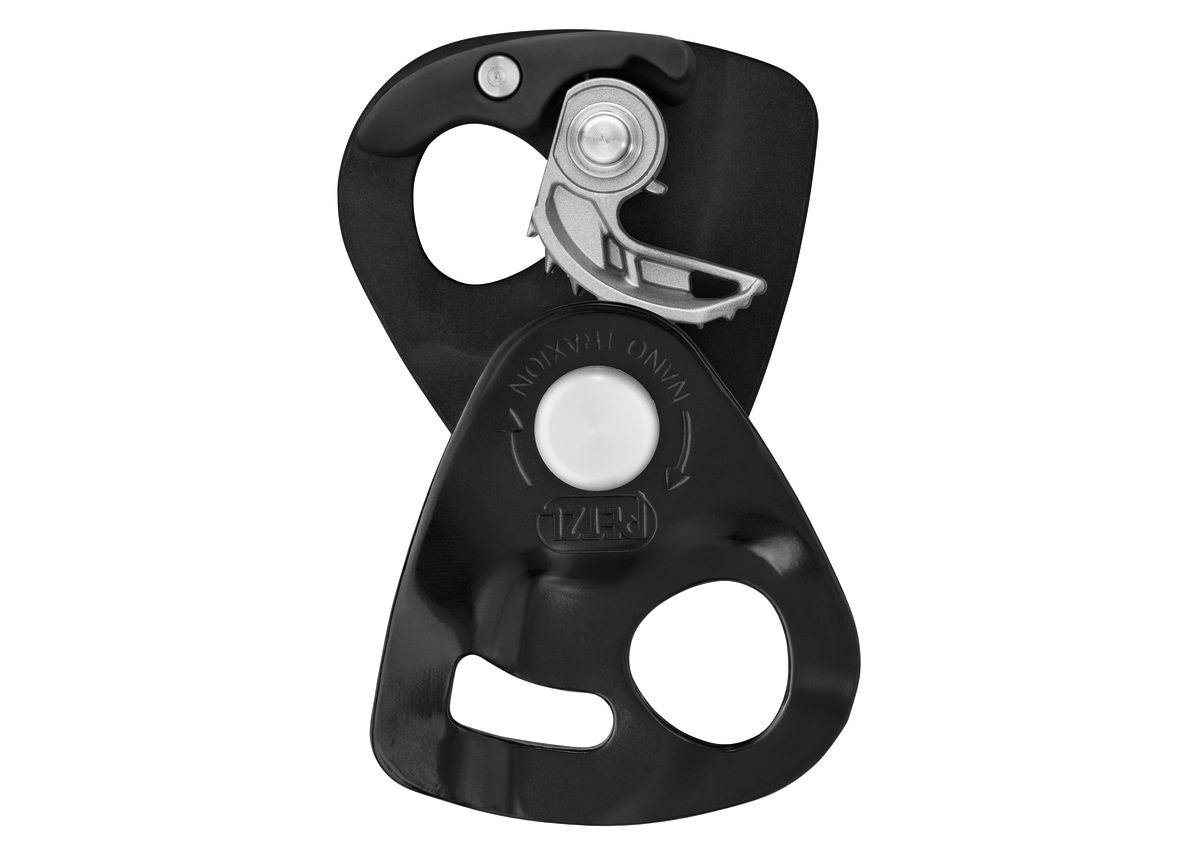

Petzl Nano Traxion

Petzl Nano Traxion

NANO TRAXION is an ultra-lightweight (53 g) and compact progress-capture pulley designed for tactical operations and rescue. Sealed ball bearings provide excellent efficiency (91%).

Downloads:
Product Data

Declaration of Conformity EU

Maintenance Tips

Key Features:

• Ultra-light and compact (only 53 g)
• Very compact design for easy handling
• Hole allows a Sm’D carabiner to be connected to the pulley with a cord, making the device loss-proof
• Designed for rescue operations
• High efficiency with sealed ball bearings (91%)
• Works effectively on frozen or muddy ropes
• Suitable for rope diameters from 7 to 11 mm
• Rope installation diagrams engraved inside the pulley

Specifications:

• Weight: 53 g
• Certification(s): CE EN 567, UIAA
• Min. rope diameter: 7 mm
• Max. rope diameter: 11 mm
• Sheave type: Sealed ball bearings
• Sheave diameter: 18 mm
• Breaking strength: 2 x 7.5 = 15 kN
• Breaking strength as progress-capture pulley: 4 kN
• Efficiency: 91%

References:

• Reference: P053AA01
• Color: Black
• Guarantee: 3 years
• Inner Pack Count: 1
