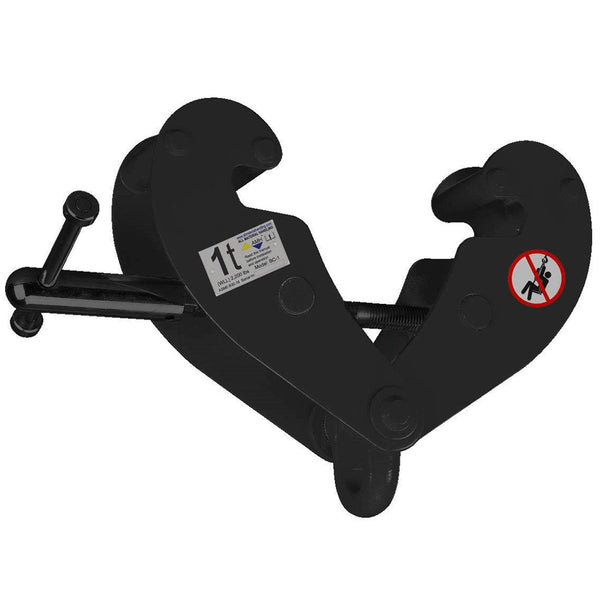

AMH Beam Clamp with Shackle 1t to 10t
$99.71
AMH Beam Clamp with Shackle 1t to 10t
$99.71
Load Capacity:
1 ton
Please enter correct zip code
Beam Clamp with Shackle 1t to 10t
Our Beam Clamp with Shackle 1t to 10t, the perfect solution for easy and safe rigging and hoisting applications.
- Versatile 5:1 design factor: With a 5:1 design factor, this clamp can be used with both powered or manual hoists, providing you with versatility and reliability.
- Easy and Tool-Free Installation: Installation is a breeze with this clamp, as it can be easily installed by hand without the need for any tools.
- Compact and Portable Low Headroom Design: Its low headroom design makes it a compact and portable option that can be used in any space.

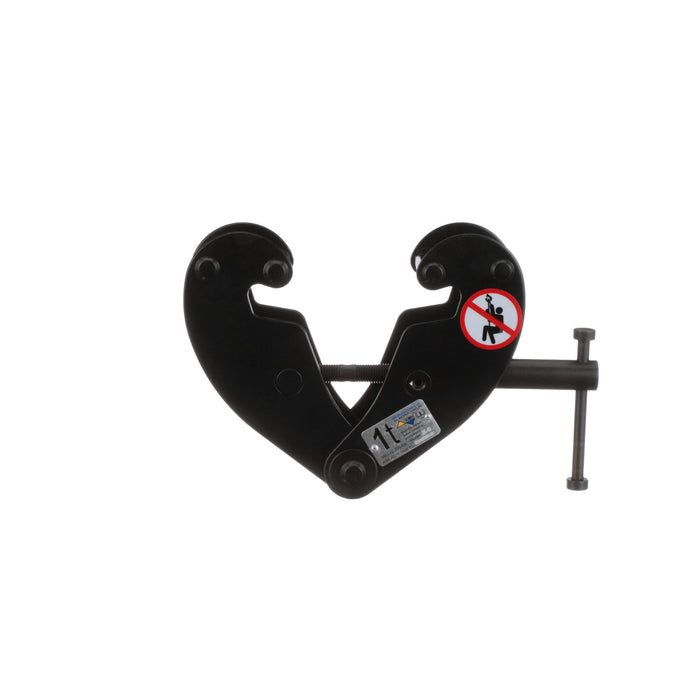

- Flexible Options with or without Movable Shackle: The BCD model comes with a movable shackle, while the BC model does not, giving you options to suit your specific needs.
- Sleek and Visually Appealing “Theatrical Black” Color: This clamp also boasts a sleek and stylish “Theatrical Black” color, making it a visually appealing addition to any workspace. All parts of the clamp are matte black, adding to its overall aesthetic.
- Safety-Compliant with Multiple Standards: Safety is of utmost importance, which is why this clamp meets several safety standards, including OSHA, ASME B30, NASA-STD-8719.9, and EU Directives: 2006/42/EC. You can rest assured that this product is safe and reliable for all your rigging and hoisting needs.
Overall, our Beam Clamp with Shackle 1t to 10t is a reliable and versatile option that provides easy installation, portability, and safety for all your rigging and hoisting applications.
Beam Clamp with Shackle 1t to 10t Specifications
- Brand: All Material Handling (AMH)
- Working Load Limit: 1 ton - 10 metric tons capacity
- Model: BCD (with shackle)
| 1t | 2t | 3t | 5t | 10t | |
|---|---|---|---|---|---|
| Model | BCD-01 | BCD-02 | BCD-03 | BCD-05 | BCD-10 |
| Load Capacity (in lbs) | 2200 |
4400 |
6600 |
11000 |
22000 |
| Beam Size | 3.1" - 9.4" x 0.75" | 3.1" - 9.4" x 0.75" | 3.5" - 12.2" x 1.12" | 3.5" - 12.2" x 1.41" | 3.5" - 12.6" x 1.50" |
| Weight (lbs) | 9 | 11 | 22.4 | 26.2 | 40.5 |
| Design Factor | 5:1 | 5:1 | 5:1 | 5:1 | 5:1 |
Downloads
AMH Beam Clamp with Shackle: Technical Sheet
AMH Beam Clamps: Product Flyer
AMH Beam Clamps: Manual
AMH Beam Clamps: Parts Breakdown
