Doughty Pipe To Pipe Coupler (Aluminum)
$169.27
Doughty Pipe To Pipe Coupler (Aluminum)
$169.27
Size:
9.8'' Centers
Please enter correct zip code
Doughty Pipe To Pipe Coupler (Aluminum)

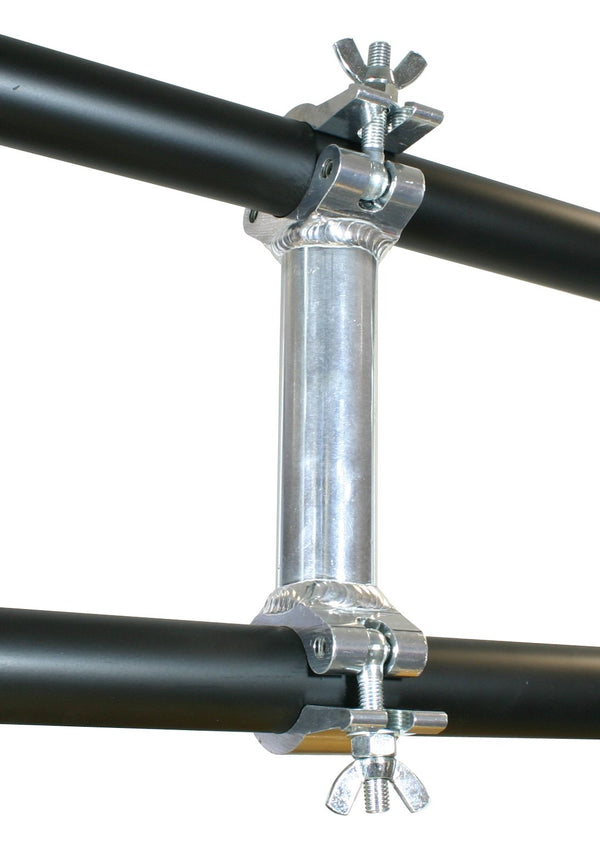

The Doughty Pipe to Pipe Aluminum Coupler provides a firm and quick coupling between two parallel tubes. This coupler is ideally suited to work with aluminum trusses and standard scaffold type bars.
Available in 2 standard sizes 9.8'' and 19.7'', with special sizes available on request. The Coupler comes in a polished finish, but available in black upon request.
For any inquiries, please contact us via chat.
Downloads:
Key Features:
- Quick and secure coupling between two parallel tubes
- Compatible with aluminum trusses and scaffold type bars
- Available in 9.8'' and 19.7'' lengths
- Polished finish standard; black finish available on request
- Special sizes manufactured upon request

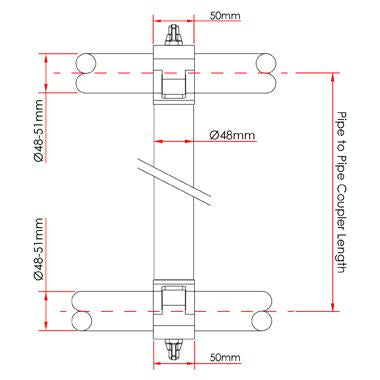

Specifications:
- SWL: 441 lbs (Vertical Load)
- Tube Diameters: 1.9'' - 2''
- Length: 9.8'' & 19.7''
- Weight: Varies with length (See Spec Sheet)
- Material: High tensile aluminum
References:
- Doughty Engineering – UK-based manufacturer since 1985
- Member of ESTA (Entertainment Services and Technology Association)
- Member of PLASA (Professional Light and Sound Association)
Doughty Engineering is one of the world’s leading manufacturers of rigging, suspension, and lifting equipment for film/TV, theatre, and concert halls. The company upholds strict safety and quality standards in all its products.
